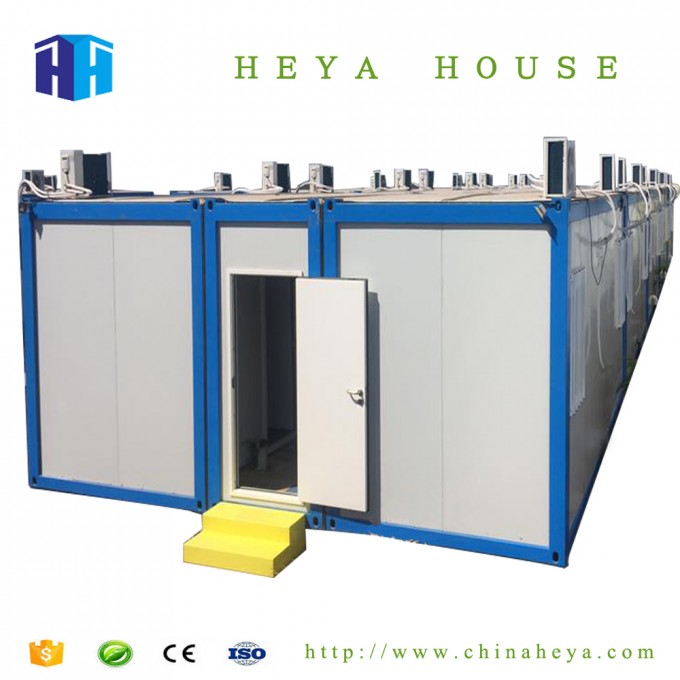

Prefabricated 40FT Modular Container House Floor Plans in South Africa

pfabricated 40ft modular container house floor plans in south africaProduct Description

Dimension(mm)&Weight(kg) forsteelcontainerhouse

Type	External				Internal			Weight(kg)
	Length	Width	Height(package)	Height(assembled)	Length	Width	Height
20'	6055	2435	648/864	2591/2790	5860	2240	2500	from1850

Floor:

Steelframe	-madefromcoldrolled,weldedsteelprofiles,4mmthick
	-4cornercasts,welded
	-2forkliftpockets(except30')-distance1200mm (internalclearanceofforkliftpockets:240×80mm)
	-steelcrossmembers,thickness=2mm
Insulation	-100mmthickRockWool
Subfloor	-0.5mmthick,galvanizedsteelsheet
Floor	-18mmplywoodboard
	-1.8mmPVCfloor -flammabilityclassB1-hardlycombustible -smokedensityclassQ1-lowsmokeemission -wearresistancefactor:Tlevel

Roof:

Steelframe	-madefromcoldrolled,weldedsteelprofiles,3mmthick
	-4cornercasts,welded
	-steelcrossmembers,thickness=2mm
Roofcover	-0.5mmthick,galvanizedsteelsheet -360degreeseamingatjointofroofpanels
Insulation	-100mmthickRockWool
Ceiling	-10mmchipboard(V20),laminatedonbothsides,white -thechipboardcomplieswiththeemissionvalueE1
CEEconnector	-sunkeninframeonshortendside

Insulationforsteelcontainerhouse

Rockwool	-density:120kg/m3
	-flammabilityclassA-noncombustible -smokedensityclassQ1-lowsmokeemission
	-certificated:CE&GL
EPS	-density:10kg/m3
	-flammabilityclassB1-noncombustible -smokedensityclassQ1-lowsmokeemission
	-certificated:CE&GL

Advantage

Why chooseContainerHouseascamp?

A,Pefabrication

Safety,quality control,fast delivery

1)production andfield workcarried out at the same time,shorten the construction period

2)production inacontrolled environmentplant

3)eliminates the adverse effects,such as:the outside worldbecause of the weatherdelay time limit for a project

4)fieldinterference is minimal,to improve the safety of theuserand siteowners

5)quick installation

B:Flexibility

Product standard,simple,easyto be adjusted according tocustomer requirements

1)infinitetransverse connection,longitudinallayer is up to three

2)indoorlayout designaccording to the customer requirements

3)projectduring usecanflexibly adjust

4)outside the housebeautiful degreecan becustomizedaccording to customer demand

C:Energy saving and environmental protection

1)uphold environmental protectionconcept in themodulehousing designand choice of materials

2)productpfabricatedensureszero wastesite

3)after the project,the modulehousingcan be easilyremoved,torestore the original appearance ofthe site

4)because of the modulehousingcan be reusedin different projectsfor many times,thus realizingthe sustainable development ofthe realbusiness model

Company Information

China Heyais the best Chinese pfabricated housing solution supplier.

Our products includepfabricated house,container house,mobile homes, villas, light steel structure.We have more 7 years experience in the industry, professional manufacture and procurement team, maintain long-term cooperative relationship with many well-known manufacturers.Already finish Germany Refugeecontainer houseproject,ZimbabwePrefabricated ClassroomProject,South AfricaPrefab House,UruguayPrefabVillages House project,and so on.

Our company is committed to become your trusted partner, you focus on your area of expertise, let us help you deal with the temporary office and warehouse of a comphensive solution.

OUR FACTORY

OUR CERTIFICATION

OUR CLIENTS

Packing&Shipment

Usually One 40HQ container can load 180 sq meter.Standard protective export packing.

Our Services

A.Professionaldesign and engineering team: Full solution forsteel structuredesign.

B.Procurement and Manufacture for all material for pfabricated building.We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.

C.Site management& Installationsupervision, We could send our engineers to help for the installation supervision, you just need to ppare a team which know normal construction works will be O.K.

OEM servicesprofessional designA timely quotationdelivery within 10 workdays

Project display
FAQ

1,What'syourPaymentterm?50%depositbyTT,50%balancebeforeloadingcontainerbyTT;100%LCatsight(totalpaymentover100,000USD);

2,HowaboutShipping?Weuse40HQcontainertoshipthegoods;Usually40HQcontainercanloadabout160-180squaremetershouse.

3, Delivery time?Depend on MOQ,usually we can arrange shipment around 10days after received deposit

4,Howtoinstall?Usuallywewillprovideinstallationdrawing,andifnecessary,wealsoprovideinstallationvideo.

5,Canyousendworkerstohelpmebuildhouse?Consideringthelaborcost,safetyandvisaissues,wesuggesttosendoneortwoengineerstoguideandtrainyourstaffs.

Youmustprovideairtickets,hotel,andmeal,and100USDperdayforengineersalary.
