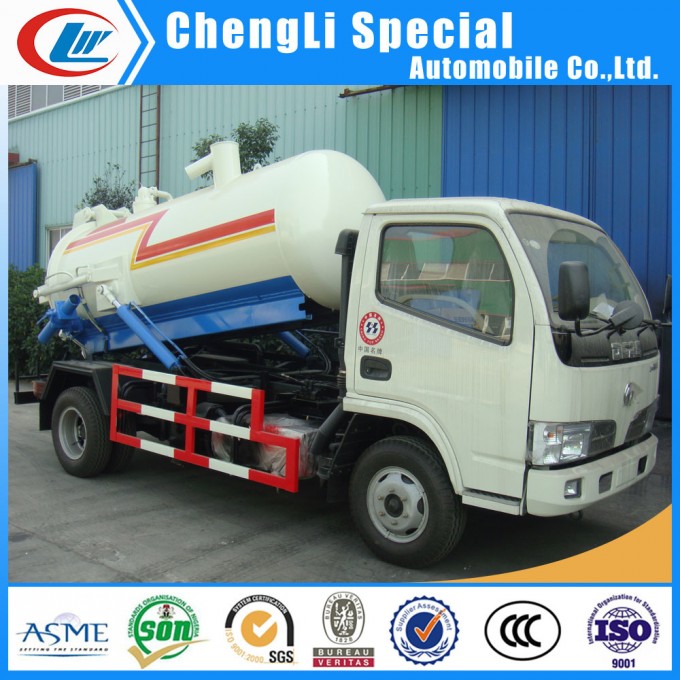

20% discount off Dongfeng 4ton 4000L vacuum sewage trucks for sale
1. 5ton sewage suction truckis mainly used forsuction, transportation and dischargeof sewage from septic tank and sludge from drains.Widely used bymunicipal environment and sanitation department and residential management.
2.Basic Equipment:
imported vacuum pump,Powe-take-off,hydraulic cylinders,multi-way valve,pssure gauges,water-gas seperator,oil-gas seperator,level inspection window,suction hose
3Advantages:
A.Tank can be lifted hydraulically to40-45 degree.Rear door can be opened&closed hydraulically. With full opening design, discharge can be very quick&complete.
B.Overfill system with music horn is euipped to pvent the vacuum pump damage from sewage water into vacuum pump when the tank is full.
Item No. | Parameters | |
Overall Dimension | 7210x2240x2600mm | |
Driving Model | Lefthand drive | |
Gross Vehicle Weight | 8275kg | |
Curb Weight | 5200kg | |
Loading Weight | 2800Kg | |
Wheel base | 3800mm | |
Front/rear Tread | 1210/2200mm | |
Approach/Departure Angle | 24/10degree | |
Front Axle | 3310kg | |
Rear Axle | 4950kg | |
Engine | Chaochai Engine CY4102-C3C,4 in-line cylinder | |
Engine horsepower | 120HP EUROIII | |
Displacement | 3.856L (Diesel) | |
Max Driving Speed | 90 km/h | |
Cabin | 2 Passenger allowed,LeftHand Driving, with Air Conditioner | |
Tire | Tubeless tire 7.50R22.5(7pieces) | |
Water Tank | ||
Volume: | 3,000L | |
Tank Length: | 2100mm | |
Diameter | 1400mm | |
SewageTank | ||
Volume: | 3,000L | |
Tank Length: | 2000mm | |
Diameter: | 1400mm | |
Tank Material: | Carbon Steel | |
LOGO | customizeddesign. | |
Other Equipment | ||
Water Pump: | HPP ELS122/160,Italy brand | |
Vacuum Pump: | Model | SK-6 |
Vertical Suction Distance | 9~10m | |
Flow Rate | 1.5m³/min | |
¢19 PVC Steel Pipes | 60m | |
Suction Pipes | 7m | |
1.The sewage tank can be dumped. | ||
2.Hydraulic open rear cover plate. | ||
sewage truck for saleDrawings
