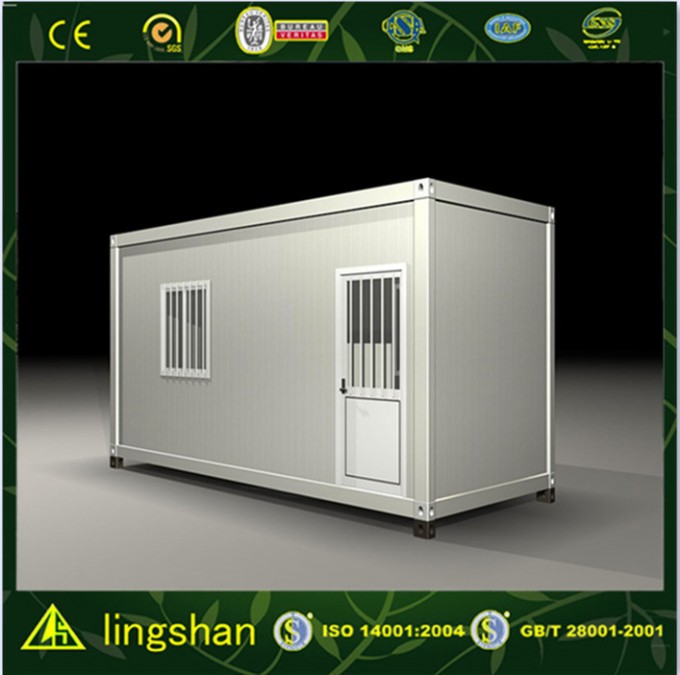

2015 Latest Design Flat Pack Container House

1. Technical Parameter:
(1).Size: GP20, GP40 and HP40 of shipping container
(2).Wind Resistance: Grade 12
(3).Wall permitted loading: 0.6KN/ m2
(4).Ceiling Permitted live loading: 0.5 KN/m2
(5).Wall Coefficient of thermal conductivity: K=0.442W/mk
(6).Ceiling Coefficient of thermal conductivity: K=0.55W/ m2K

Characters:
(1). Good ability to assemble and disassemble for several times without damage.
(2). Could be lifted, fixed and combined freely.
(3). Heatproof and waterproof.
(4). Cost saving and convenient transportation (Each 4 container house can loaded in one standard container)
(5) Service life can reach up to 15 - 20 years
(6) We can provide the service of installation, supervision and training by extra.

Dimensions and Weight
(1).Inner length /external length :5.81m/6.06m
(2).Inner width /external width: 2.188m/2.438m
(3).Inner height/external height:2,410m/2.591m
(4).Weight: 2000kg per unit

Steel framework
(1).Material: steel material Q345, thickness: 3.5mm,for top beam frame. base beam frame and column.
(2).Surface working: epoxy painting,two bottom and two surface.
(3).Fittings: 8 standard container corner mould fittings PVC standard rainwater pipe
(4).Forklift openings: size 100*250mm, distance is 1200mm

Floor
(1).External wainscot: Flat galvanized color steel sheet, 0.5mm thickness
(2).Floor structure: Girder made of 3.5mm steel. The purlin is C section steel. dimension 60x40x1.5mm.
(3).Warm proof Insulation layer:
(a)75mm rock wool
(b)18mm bamboo plywood
(c)2.0mm PVC floor leather for living rooms floor;

Ceiling
Construction:
(1).Roof exterior layer: 1.2mm steel plate withepoxy painting
(2).Warm proof insulation filling: 75mm rockwool between C section purlins;
(3).Inner wainscot: 8mm OSB board with 12mm PVC decoration board.
(4).Roof water drain: 4 PVC rainwater pipes in the corner pillars, diameter 50mm

Walls
(1).Panel width: 1150mm; panel total thickness: 75mm, five panels fit into the long side and two panels fit into the short side.
(2).Common room wall: 75mm rockwool 0.4/0.4mm Galvanized. Steel on both side .
Desity of Rockwool: 120Kg/m3
(3).Galvanize window opening on the wall if needed.

Door
(1).External door: Insulated with opening dimension 950*2100mm, furnished with lock
with 3keys.
(2).Inner door: Insulated steel door.

Windows
Window material: PVC window with fly screen. Double glass, 4mm glass.

Electrical fittings option
Electrical wire, 2.5mm2 for lighting system, and 4mm2 for AC units.
Main outlet and input industrial socket with 32A.
3 pcs 16A five hole universal socket.
2 pc double tube fluorescent lamp, 220V,50-60HZ
1 pc Single Switch, Honyar brand, with junction box
1 pc Electrical distribution box, box+breakers+earth leakage protective device

Optional Water system fittings
(1).Water drain pipe, PPR pipe, dim 16-20mm, connection fittings are made of copper, life span over 10 years.
(2).Exhaust fan or air exchange hole, size 250mm*250mm made of steel or PVC
(3).Sanitary ware:
(a).Western Close tool: ceramic, with pipes and installation fittings
(b).Urinal: ceramic, with pipes and installation fittings
(c).Washbasin: ceramic, with post, faucet, pipes and installation fittings
(d).Shower head, Shower base, Water mixture.

2. Our Services
1. Professionaldesign and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
2.Procurement and Manufacture for all material for pfabricated building.We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO standard, to make sure the fabrication works with high technology.
3. Site management& Installationsupervision, We could send our engineers to help for the installation supervision, you just need to ppare a team which know normal construction works will be OK.

item	remark
frame
Steel frame	3.5mm,Q235, welding,rust removal,epoxy painting
floor support	C100x40x2.0, welding,rust removal,painting
fork lift open	4mm,Q345
Roofing
outer steel sheet	1.2mm steel sheet, proceed,epoxy painting
steelkeel	C80x40x20x2.0
insulation layer	80mm glass fiber, 35Kg/m3
wooden board	8mm
PVC board	12mm
Wall
EPS sandwich panel	75mm EPS sandwich panel,0.4/0.4mm,12Kg/m3
outer door	light steel door, including door lockers,etc
sliding window	4mm double glass sliding window,with window screen
Floor
floorleather	1.5mm, including glue
bamboo board	15mm bamboo board
Insulation	100mm glass fiber
Floor bottom board	0.5mm
Electric unit
common socket	16A
ceiling light	38W
electric cable	three colors
switch
distribution board	box+switch+earth leakage protective device
Others
lift corner piece	standard parts
rainspout	Φ50PVC
accessories	self-tapping screw,glue,edge cover,etc
