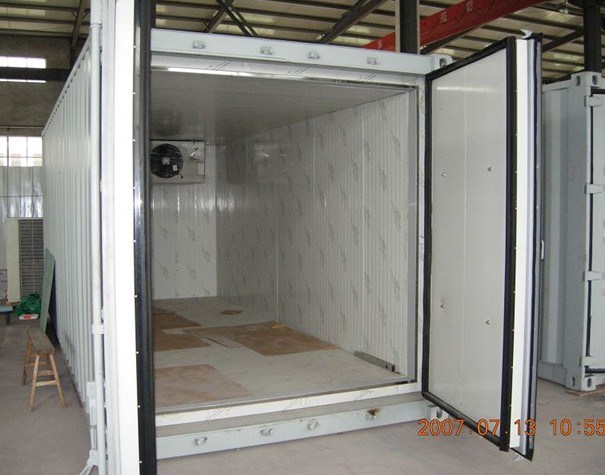

Container Cold Room for Food Storage

Huge/Large Cold Room/ Cold Storage/ Chiller/ Freezer/ Blast Freezer /Refrigerator

1. Quick Refrigeration
2. Long Refreshment Time
3. imported Condensing Unit and Other parts
4. Top -10 Brand in China

Features:
1. Temperature range: -60 celsius ~+ 20 celsius are all available
2. Size: Customization
3. Functions: Fresh-keep, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available
4. Good performance, low noise and high reliability
5. World renowned brand refrigeration accessories, guarantee long use cycle.
6. The automatic high pcision digital controller is easy to operate with high efficiency.
7. Adjustable indoor temperature saves electricity up to 30%

Components:
Condensing unit: Bitzer, Copeland, Maneurop, Fusheng
Evaporator: KELTESS air cooler.
Insulation Panel: PU, EPS
Other accessories: World-famous brands, like Danfoss, Castle, Every Control, Siemens, LG

Advantages:
Laiao cold room was honored with "Top-10 brands in China"
Laiao is one of the few companies in China which have "First-grade Qualification for Cold Room Installation".

Application fields:Biology, industry, military, food, florist, farming, medicine, logistics, hospitality, andfood processing.

Exported country:Global Market

Factory and workshop



Project cases

Customized cold room/ storage

Dimension	Length (m) *Width (m)*Height (m)
Panel	Polyurethane insulation panel,43kg/m3, fire retardant B2,PIR
Foaming material	BASF
Panel thickness	50mm,75mm,100mm,120mm,150mm,200mm
Steel cover	stuccom embossed aluminum,painted galvanized steel,stainless steel,PVC stell
Panel connection	cam lock type, use hexagonal key to assemble and disassemble
Type of door	hinge door, convex door,manual sliding door,electrical sliding door
Temp.of room	-60~+20 degree ºC, optional
Purpose of cold room	fruit,vegetable,flower etc,frozen food,fish,meat,chicken etc.
Refrigeration unit	Bitzer, Copeland, Maneurop, Fusheng etc.
Refrigeration type	air cooled /water cooled/evaporative cooled
Fittings	all necessary fittings are included, optional
Place to assemble	indoor/out door(concrete construction building/steel construction building)
Voltage	220V/50HZ, 220V/60HZ, 380V/50HZ ,440V/60HZoptional

Room size type.

Room size	small	middle	big
volume range	<500m3	500m3~5000m3	>5000m3

Tempture table for reference

cold storage goods	tempture range
processing room	10C
fruit, vegetable, dry food	0C~-5C
medicine, cake, pastry, chemical material	0C~-5C
ice storage room	-5~-10C
fish, meat storage	-18~-25C
deep freezer	-25C~-35C

Compssor type and condenser

compssor type	bitzer(Germany)	refcomp(italy)	copeland(US)	manurope(France)
condenser	air cooled	water cooled	evaporating

Panels information

office Foam panel	50mm thickness
processing room 10C	50mm/ 75mm PU
5C	75mm/ 100mm PU
-18C	100mm/ 150mm PU
-25C/ -35C	150mm/200mm PU
panel steel cover	SS, GI, aluminum etc
