Detailed Description
10m3 High Pressure Jetting Sewage Suction Truck with Jetting for Sewer Cleaning
2500 gallons suction truck, 10m3 vaccum suction truck
Vacuum sewage suction truck could be used to suction waste water, little stone, sand, mud, animal and vegetable oil, solid materials as well as human waste. the hydraulic vacuum system able to suction and discharge that kind of materials.
| Item | Parameter |
| Model: | CA5111XXYPK2L3EA80-3Fecal Suction Truck |
| Overall dimensions | 10275×2305×2600mm |
| Produced by | QINGDAO HETANCH TRUCK CO.,LTD |
| Cabin | FAW J5K with A/C, LHD |
| Wheel base | 4970mm |
| Engine Model | CA6DF3-18E3FEURO 2, 180HP |
| Gearbox | CA6TBX075M, 6Forward Speeds |
| Clutch | 380mm |
| Website | www.sinohtc.com |
| Rear axle | 435(rate: 5.571) |
| Tyre | 9.00R20-16 Radial tyre |
| Max speed | 83km/h |
| Max overall weight | 16990kg |
| Rated load weight | 9990kg |
| Curb weight | 7000kg |
| Tanker | Volume | 2500 Gallons |
| Material | Carbon steel |
| Thickness | 4mm/ 5mm |
| Vacuum Pump | Quick suction and discharge |
| Hose | Wire strengthened hose |
| Rear door | Opened by hydraulic cylinder |
| Accessories | Anti-fill valve, level indicator, inlet, discharge, high quality suction hose |
| Jetting water pump |
| Produced by | / | Italy /Germany brand high pssure plunger pump |
| Max flux | L/min | 200 |
| Working pssure | Mpa | 20 |
| Jetting high pssure pipe | / | 70 meters¢19 ,hydraulic operation |
| Pipe Retractable wring tension | KN | ≥10 |
| Pipe winding speed | m/min | 0-25 |
| Jetting spraying nozzles | / | 10 pcs carbon steel spraying nozzles |
| Pipe reel rotation | / | 180° |
| Pipe reel rotation | / | Rear of tank |
| Vacuum pump |
| Model | / | PN84D (Italy brand) |
| Flux | L/min | 9000 |
| Max vacuum degree | / | 92% |
| Max pssure | bar | 1.5 |
| Max power | KW | 11.2 |
| Max sewage suction depth | m | ≥7.8 |
| Other configuration |
| Sewage tank lifting | / | Hydraulic lifting dumping |
| Tank slope angle | ° | ≥5 |
| Sewage pipe | mm | 102 |
| Pumping time | min | 5-7 |
| Boom length | mm | 1000 |
| Boom rotation angle | ° | 270 |
| Boom lifting angle | ° | 0-20 |
| Hydraulic pssure | Mpa | 16 |
| Control way | / | Manual and electronic control |
| Hydraulic motor | / | Chinese brand |
| Multi valve manufacturer | / | Chinese brand |
| Hydraulic pump | / | Chinese brand |
| Hydraulic cylinder | / | Chinese brand |
We also could supply more models with different tanker volume. And the truck chassis could be used DONGFENG, SINOTRUK and SHACMAN. The driving type have 4x2, 4x4 and 6x2, 6x4. More details, feel free to co
ntact us please.
Tel: +86-532-84812878
Website: www.sinohtc.com

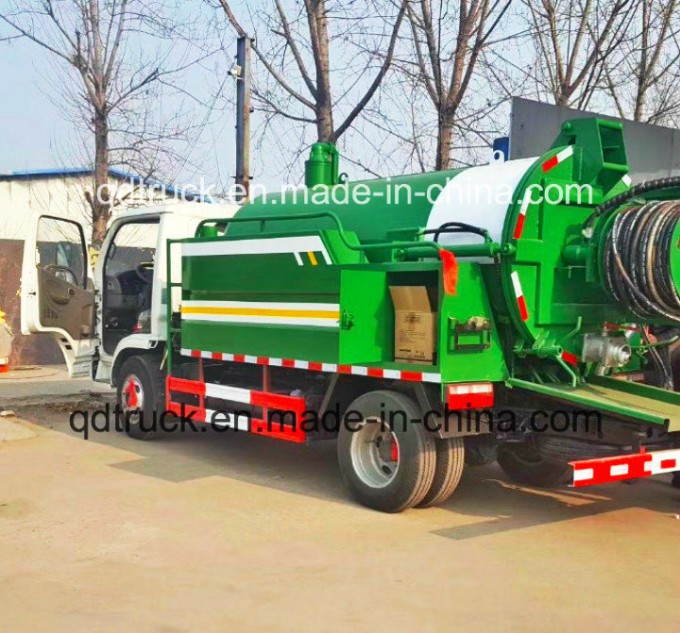

Product Image
