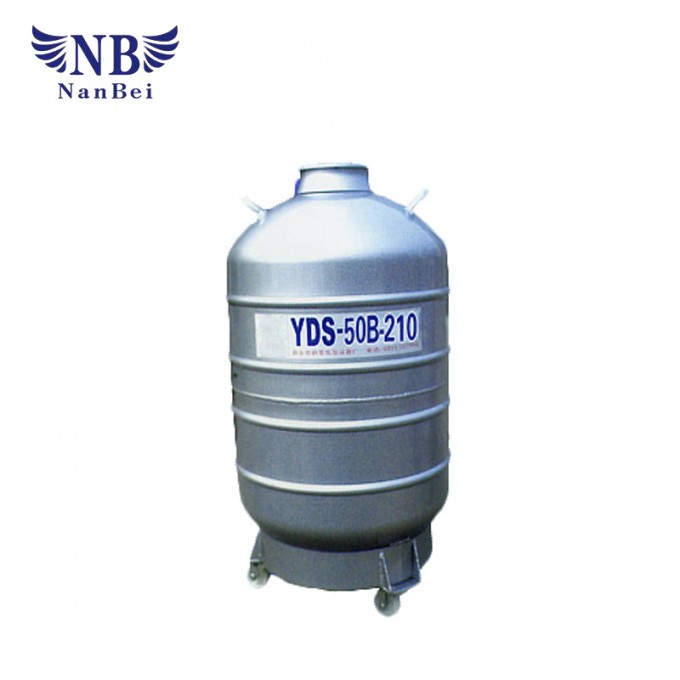

Aluminium Alloy Transport Type Liquid Nitrogen Container

Aluminium alloy transport type Liquid nitrogen container

The family of products is the need for manual transfer or transport of biological samples in liquid nitrogen,especially in mountainous areas,grasslands and the design of the user.With acompact size and lightweight,easy to carry.Static evaporation of liquid nitrogen is low,the use of economic advantages.

Features :
1.It is made by high strength aluminium alloy,light weight.
2.It has unique shockproof constructure,strong and durable,difficult to broken.
3.Numbered canister,easy to identify stored samples.
4.Configurate protection case,in case of crack in using.
5.Main parts necktube has low heat conductivity coefficient,high mechnical strength,beatiful color,easy to identify.
6.It design by high degree vacuum multilayers heat insulation design,supply not less than 5years vacuum quality assurance.

Parameters:

Model	Volume (L)	Neck diameter ≤mm	External Diameter ≤mm	Height ≤mm	Net weight ≤kg	Liquid stored time(days)		Liquid evaporation(L/day)
						B	A	B	A
YDS-10B	11.2	50	305	550	6.5	52	64	0.208	0.172
YDS-15B	16	50	365	600	9	65	85	0.208	0.172
YDS-30B	32	50	446	670	14.5	159	191	0.24	0.2
YDS-35B	35.5	50	446	695	16	179	215	0.223	0.187
YDS-50B-80	50	80	500	850	22	147	189	0.400	0.33
TDS-50B-125	50	125	500	850	22	110	134	0.476	0.4
TDS-60B-210	63	210	560	900	32	63	74	1.000	0.851

Optional accessories:
1.Canister
The use of stainless steel manufacture, the middle by the low-temperature-resistant glass made of glass cloth wrapped to pvent conduction of liquid nitrogen, get the convenience. The series products are multi-layer tube to asquare stainless steel box, designed for biological instifutes, the design of the hospital store.

2.Cover lock
. The use of high-strength aluminum
. With anti-corrosion resistance, low temperature of liquid nitrogen to pvent Frost Crack, the advantages of cold collapse.
. By the next filp the clamshell and is composed of two parts, the user can lock(lock the other purchase by the user). In favor of biological sample storage containers to pserve the security and management.

3.Liquid level alarm
Automatically monitoring the storage of containers of biological samples when the temperature over the range of temperature control for sound, light alarm, ensure the safety of storage of samples. Adjustable temperature control range of products to 0-196ºC, aresolution of 1ºC.

4.Stainless steel storage with milk barrels
This series product adopt stainless steel production, suitable for storage of liquid milk and transportation, short-term operation relatively large caliber. With nice appearance, the intensity is high, easy to clean thoroughly and reliable sealing advantages.
1.Full stainless steel products, high strength and durability
2.Milk barrels outside surface uses the polishing treatment, concise and easy.
3.The pail inside surface grind arenaceous technology adopted, easy to clean thoroughly.
4.Barrel used for sealing, foodstuff rubber ring with health and safety requirements.


Package & Shipping
Package : Carton box package
Shipping : 5days
