LNG Lco2 Cryogenic Tank, ISO Cryogenic Storage Tank Container

LNG LCO2 Cryogenic Tank, ISO Cryogenic Storage Tank ContainerTechnical parameter

Name	Parameter
Effective Capacity	20M3
Working Pressure	2.16MPa
Design Temp	-40°C (inner tank)
Inner Material	16MnDR
OuterMaterial	Q345R
Insulation	Vacuum powder insulation
Filling Rate	95%
Loading medium	Liquid co2
Design standard	a.GB150 <Pressure Vessels> b.GB/T 18442< Cryogenic >Insulation Pressure Vessels> c.TSGR0004 <Pressure Vessels' Safety Technical Supervision Rules> d CE CU-TR ifSpecial requirements
We can customize the cryogenic tank of special capacity and pssure with different design standard or certificate(GB CE CU-TR INMETRO etc)

Model List

Item	Effective volume(m3)	Working pssure(mpa)	Working medium	Plavement	Size(mm)	Weight(kg)
CFL-5/2.16	5	2.16	Liquid co2	Vertical	Φ2000*5130	~4450
CFL-10/2.16	10				Φ2100*7170	~6986
CFL-15/2.16	15				Φ2500*6912	~8810
CFL-20/2.16	20				Φ2500*8756	~11328
CFL-30/2.16	30				Φ2900*8875	~17961
CFL-50/2.16	50				Φ3200*11300	~26097
CFL-100/2.16	100				Φ3500*12570	~49627

All of above tank are vertical models, and each one have a corresponding horizontal model, such as CFW-10/2.16, CFW-50/2.16 etc. You can choose any models with any placement type you like.

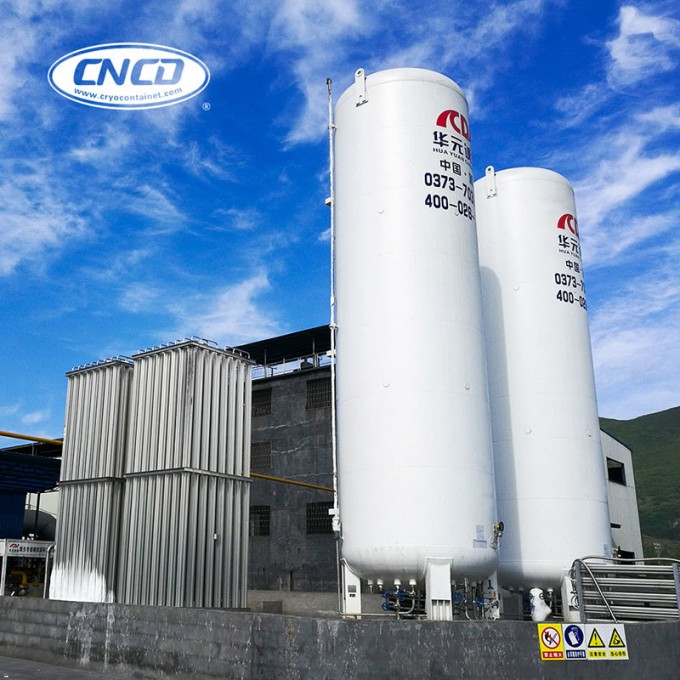

Product Show


Package and shipping


Customer's visit

Related product

FAQ
1. What information needed if we sent you the inquiry of the tanks?
The capacity, working pssure and the working medium is most important, and then your special request is also very important.
If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.
2. How about quality of your products?
All the cryogenic liquid tanks are new.
All the material come from our direct suppliers, and all confirm with the national standard.
3. How can you guarantee your tanks quality?
For cryogenic liquid storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.
4. Do your tanks include the cryogenic pump and vaporizer?
We can also provide cryogenic pump or vaporizer if clients requires
