Iveco Hongyan Construction Equipment 12cbm Concrete Mixer Truck

IVECO Hongyan Construction Equipment 12cbm Concrete Mixer Truck

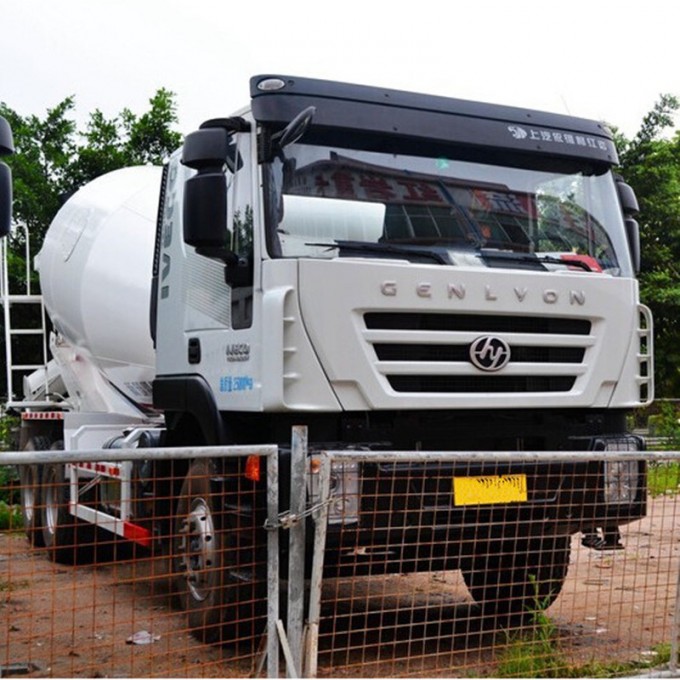

1.IVECO HonGYAN GENLYON 340HP 6X4 concrete mixer truck
2. Long and flat roof cabin,single sleeper,auto-air conditioner
3.High quality and competitive price
4.Quick delivery time
5.Best after-sales

Product Description

Vehicle	Model	TG5252GJBCQD
	Overall dimension length/width/height(mm)	9830x2500x3950
	Gross Vehicle Mass(kg)	25000
	Curb weight(kg)	15160
	Rated load(kg)	9710
	Fuel Type	Diesel
	Top speed(km/h)	80
Chassis	Brand	hongyan
	Model	CQ3255HTG40-504
	Drive type	6×4, LHD(or RHD)
	Number of Axles	3
	F/R Axle load (kg)	7000/18000(dual-axis)
	Wheel base (mm)	4000+1400
	Front track base (mm)	2006
	Rear track base (mm)	1850/1850
	Approach/Departure Angle(°)	25/12
	F/R Suspension (mm)	1435/2795
	Number of Tyres	10
	Tyre type	11.00-20 18PR,11.00R20 18PR,12.00-20 18PR
	Pieces of spring	9/12
	Transmission	5 forward gear,1 reverse gear,manual mechanical type
	Clutch	Uniwafer, dry clutch, hydraulic remote control
	Braking system	Air braking, cam drum braking
	Cab	One and half row non-longhead cab can turn over
	Air-condition	Chose to fix
Engine	Model	F2CE3681G*P	F2CE3681E*P	F2CE3681E*P	F3BEE681C*T
	Horse Power(hp)	340	375	340
	Displacement(cc)/ Power(kw)	8709/257	8709/287	12880/258	12880/286
	Emission	Euro4
Mixing drum parameters	Feed speed(m3/min)	≥2.8
	Discharge speed(m3/min)	≥1.2
	Residual ratio(%)	≤0.5
	Rotation rate of mixing drum(rpm)	0-17
	Mixing drum material	Q345 carbon steel
	Mixing drum material thickness	6mm
	Tanker capacity (L)	4.5
Production cycle	10-20 days
Warranty	12 month, from the date of supply

FAQ

Q:I want to transport the truck by container, is it ok?

A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.


Q:How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.


Q:I want to be your agent in my country ,is that ok?

A:It's ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q:I want the front two tyres are bias tyre and the rear 9tyres are radial tyres, is it ok?

A: We can make the tyres as your requirement to suit your country's need.
