Traction type: 6X4
Driving type: LHD (RHD is optioned)
Cabin: HOWO 70 cab, flat head, double doors, tippable
Engine brand: Steyr (Weichai)
Engine model: WD615.69 EURII
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line
with water cooling, turbo-charging & intercooling
Displacement: 9.726 liters
Max. Output: 336HP@2200rpm
Max torque: 1250NM@1100-1600rpm
Bore/Stroke (mm): 126/130
Mean Position Speed: 9.53m/s
Compssion ratio: 15.5: 1
Specific fuel consumption: 198g/Kwh
Gear box:
Model: HW15710(SINOTRUK)
No. Of speeds: 9 forward, 1 reverse
Clutch:
Model: GF420 Spring type
Type: Single -plate dry clutch, mechanically operating with air assisted
Steering: ZF8098 integral type power-steering
Front axle: HOWO front axle
Rear axle: HC16 rear axle
Tyre: 12.00-20 (rim: 8.5-20)
No. Tyre: 10+1spare
Spring: 9/12, 10/12
Fuel co
nsumption (L/100km): 36
Fuel tank capacity (L): 300
Max. Speed (km/h): 90
Max. Gradability(%): 25
Kerb. Mass: 118700kg
Total mass: 25000kg
Wheel ba
se (mm): 3625+1350
Front overhang (mm): 1500
Rear overhang (mm): 2240
Front track (mm): 2022
Rear track (mm): 1830
Turning circle diameter: 24m
Approach angle: 16 degree
Departure angle: 26degree
Dimension (mm): 8715x2496x3850

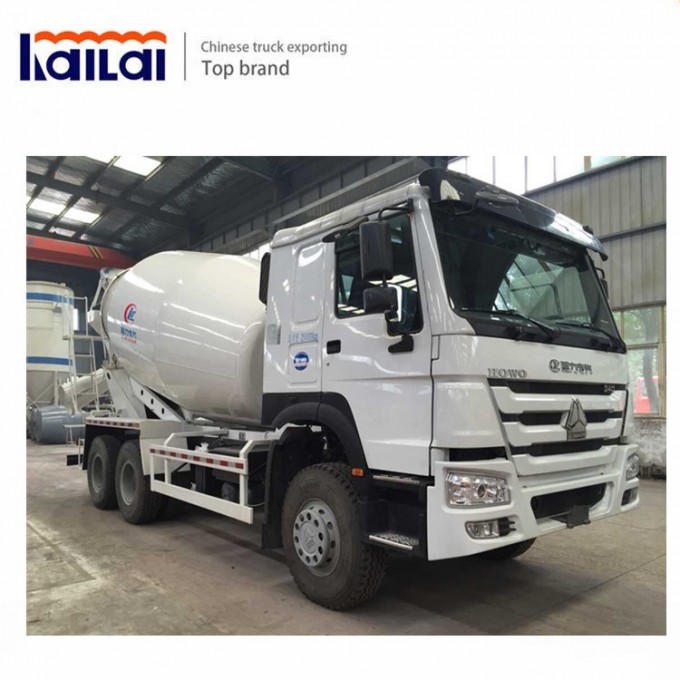

Body(mixer, drum):
Water Tank: 440L
Mixer drum: 7CBM
Hydraulic pump and motor: ETON (America)
Decelerator: Italy 6SP
Discharged remain Ratio: < 0.1%
STEYER,MAN,BENZdesignplatform. INTERNATIONALQUALITYSTANDARD
|
Cabin
| airdeflector,air-condition ,singleordouble sleeper,USBapplication,
electricwindowlifter,GPRSmanagementsystem. MAN/STEYERcabin
|
Drive type
| Lefthand/righthand,4x2,6x2,6x4,8x4,6x6.
|
Engine :WEICHAI(WPseries,WDseries)CUMMINSseries:
|
Type
| Diesel4-strokedirectinjectionengine,
6-cylinderinlinewithwatercooling,turbo-charging&intercooling.
|
Numberofcylinder
| Inlinesix-cylinder
| BOSCHoilpump
|
Displacement
| 5.762L,11.596L
|
|
Emission
| Euro 2,3,4
|
|
Maxtorque(kg.m/rpm)
| 1 070NM-2000NM@1400-1600rpm
|
Cl u tch
|
Type
| φ 430diaphragmconstruction
|
Single-platedrycluth,mechanicallyoperatingwithairassisted
|
Gearbox ,Transmission
|
Model
| FASTFULLER(recommendation),ZF8098,
|
Type
| 9,10,12,16speeds AS ( AutomaticSynchronizer )
|
Gearbox
| Mechanicalform , Remotecontroldevice
|
Front axle
|
Type
| STYER/HANDE,
|
Permissbleload
| Kg /axle
| 65 00 kg,7500kg
|
Rear drivingaxle
|
Model
| STYER/HANDEdrivingaxle
|
Type
| Pressedaxlehousing,single/doublereductionwithplanetarywheelreduction.
|
Permissbleload
| Kg /axle
| 1 3000kg,16 000 kg
|
Track
| 1800/1860
|
Transmission ratio
| 4.424.805.736.727.498.409.94
|
Tyre :
|
| Bias/RadialTYRE315/80R22.5/12.00R20
|
Brakingsytstem
|
Brake
|
| ABS,ASR
|
Servicebrake
| Dualcircuitpneumaticbrake
|
Parkingbrake
| Springenergy,compssedairoperatingonrearwheels
|
Hanging
|
Type
| FR/RR
| Springplate,Lug/Multi-leafspring
|
Electricequipment
|
Operatingvoltage
| 24v,negativegrounded
|
Batteryvoltage/capacity
| 12v/135A,165A
|
Turningtechnology
| ZF8098hydraulicpssuresteeringsystem
|
OilTank : 38 0L -1000L
|
DimensionofKingpin(5thwheel): 50(2''),90(3.5'').
|
Otheroption: PTO,morethan20colors'surface,strengthenleafspring.mainlyasyourrequests.
|
