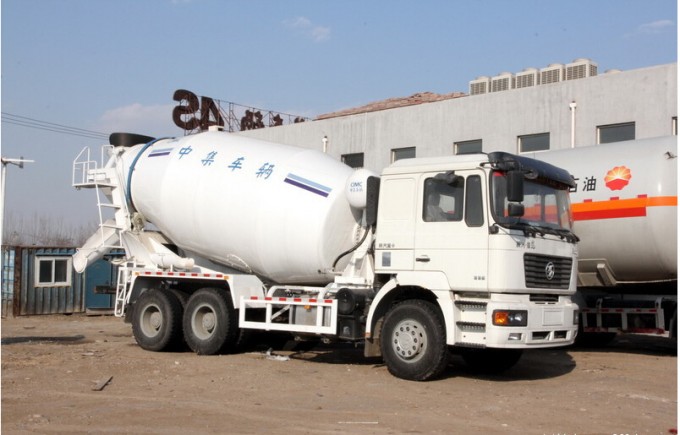

Vehicle | Model | SX5256GJBDR404H | |||
| Overall dimension length/width/height(mm) | 9850x2490x3985 | ||||
| Gross Vehicle Mass(kg) | 25000 | ||||
| Curb weight(kg) | 13900 | ||||
| Rated load(kg) | 10905 | ||||
| Fuel Type | Diesel | ||||
| Top speed(km/h) | 77 | ||||
| Chassis | Brand | SHACMAN D'LONG F3000 | |||
| Model | SX5256GJBDR404H | ||||
| Drive type | 6×4, LHD(or RHD) | ||||
| Number of Axles | 3 | ||||
| F/R Axle load (kg) | 7000/18000(dual-axis) | ||||
| Wheel base (mm) | 3975+1400 | ||||
| Front track base (mm) | 2036 | ||||
| Rear track base (mm) | 1860/1860 | ||||
| Approach/Departure Angle(°) | 20/14 | ||||
| F/R Suspension (mm) | 1525/2950 | ||||
| Number of Tyres | 10 | ||||
| Tyre type | 11.00-20 18PR, 12.00-20 18PR,11.00R20 18PR,12.00R20 16PR | ||||
| Pieces of spring | 10/12 | ||||
| Transmission | 5 forward gear,1 reverse gear,manual mechanical type | ||||
| Clutch | Uniwafer, dry clutch, hydraulic remote control | ||||
| Braking system | Air braking, cam drum braking | ||||
| Cab | One and half row non-longhead cab can turn over | ||||
| Air-condition | Chose to fix | ||||
| Engine | Model | WP10SNG336E40 | |||
| Horse Power(hp) | 336 | ||||
| Displacement(cc)/Power(kw) | 9726/247 | ||||
| Emission | Euro4 | ||||
| Mixing drum parameters | Feed speed(m3/min) | ≥2.8 | |||
| Discharge speed(m3/min) | ≥1.2 | ||||
| Residual ratio(%) | ≤0.5 | ||||
| Rotation rate of mixing drum(rpm) | 0-17 | ||||
| Mixing drum material | Q345 carbon steel | ||||
| Mixing drum material thickness | 6mm | ||||
| Tanker capacity (L) | 5 | ||||
| Production cycle | 10-20 days | ||||
| Warranty | 12 month, from the date of supply | ||||
