10 Year of Warranty Time Cantilever Racking

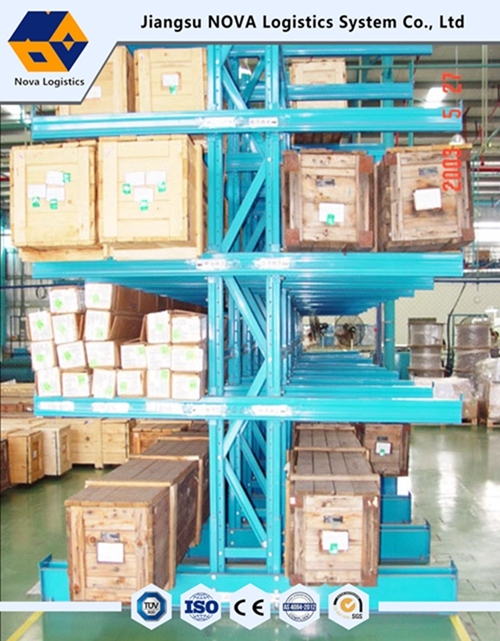

CE Cantilever racking system

Specification:
1. It is mainly used for the storage of long stuff such as rolled section steel, steel tube, plates, wire lines and so on.

2. Upright shaft is usually made of H type steel or cold rolling steel or frame, square tube, cold rolling steel or H type steel are used to make arms.

3. Cantilevers are assembled to upright shafts by composite type or bolts&nuts which is also for the fixation between base and uprights.

4. Level height is adjustable. Loading and unloading of goods can be done manually or by forklifts.

5. The height of cantilever racking is usually lower than 2500mm (the height up to 6000mm by using forklifts for loading); Length of arm is shorter than 1200mm, and loading capacity is no more than 1200kg per arm.

6. Cantilever racking is mainly used in the Mechanical Manufacturing Industry and markets for building materials.

AFQ:

1. What makes you differentwith others?

1) Our Excellent Service

For a quick, no hassle quote just send email to us

We promise to reply with a price within 24 hours - sometimes even within the hour.

If you need an advice, just call our export office at 0086-25-51873961, we will answer your questions immediately.

2)Our quick manufacturing time

For Normal orders, we will promise to produce within15 days.

As a manufactory, we can essure the delivery time according to the formal contract.

3)Our Special Export Design

We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4)Our Warranty Time

The High Standards in the Design and Manufacturing ensure us to supportthe products with a 10-Year Warranty Time for your normaluse, it is the Longest Manufacturer's Warranty !

2. Whatis delivery times?

This depends on the product. Typically standard products are delivered within 20 days.

The delivery time of the special products is according to the time of setting up of the tooling.

3.Whatis the term of payment?

1) T/T payment.2) LC

4. May I know the status of my order?

Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?

Yes, we can send some sections of samples for your reference by expss.

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
