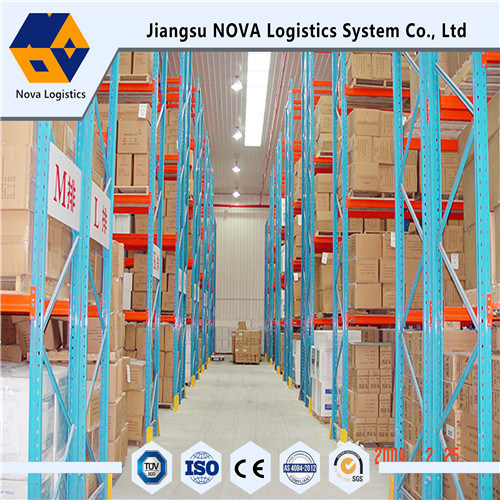

Heavy Duty Steel Selective Pallet Racking From Nova

Selective Pallet Racking
Details:

Racking is taken as a suitable and economical storage solution:

1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;

2. We supply quite big sections of upright to suit special needs;

3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;

4. Epoxy powder coated and galvanized surface treamment to pvent against corruption;

5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

1. Upright: NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.

2. Beams are divided into Box beams and Step beams.

3. Sectional sizes of box beams include: Y80, Y100, Y110, Y120, Y140, Y160.

4. Sectional sizes of step beams include: P80,P100,P125

5. Pallet support bar: Regular type and cut-in adjustable types.

frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing:stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity:3000T/month - Main market: exported more than 40countries, such as AU, PH, SG,UK, INDIAand etc. - Available in various colors/specifications/sizes

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
