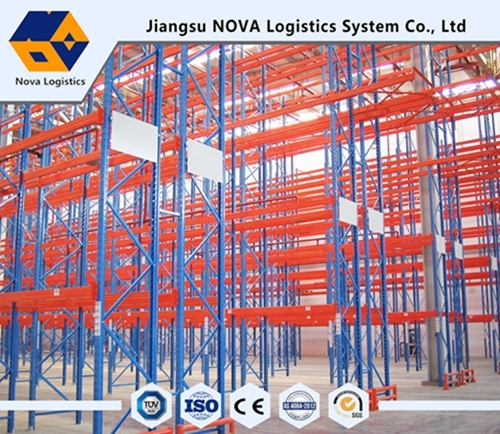

Heavy Duty Steel Warehousing Selective Pallet Rack

Details:
Racking is taken as a suitable and economical storage solution:

1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;

2. We supply quite big sections of upright to suit special needs;

3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;

4. Epoxy powder coated and galvanized surface treamment to pvent against corruption;

5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:
1. Upright: NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.
2. Beams are divided into Box beams and Step beams.
3. Sectional sizes of box beams include: Y80, Y100, Y110, Y120, Y140, Y160.
4. Sectional sizes of step beams include: P80,P100,P125
5. Pallet support bar: Regular type and cut-in adjustable types.

frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	- Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing:stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity:3000T/month - Main market: exported more than 40countries, such as AU, PH, SG,UK, INDIAand etc. - Available in various colors/specifications/sizes

AFQ:

1. What makes you differentwith others?

1) Our Excellent Service

For a quick, no hassle quote just send email to us

We promise to reply with a price within 24 hours - sometimes even within the hour.

If you need an advice, just call our export office at 0086-25-51873961, we will answer your questions immediately.

2)Our quick manufacturing time

For Normal orders, we will promise to produce within15 days.

As a manufactory, we can essure the delivery time according to the formal contract.

3)Our Special Export Design

We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4)Our Warranty Time

The High Standards in the Design and Manufacturing ensure us to supportthe products with a 10-Year Warranty Time for your normaluse, it is the Longest Manufacturer's Warranty !

2. Whatis delivery times?

This depends on the product. Typically standard products are delivered within 20 days.

The delivery time of the special products is according to the time of setting up of the tooling.

3.Whatis the term of payment?

1) T/T payment.2) LC

4. May I know the status of my order?

Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?

Yes, we can send some sections of samples for your reference by expss.

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
