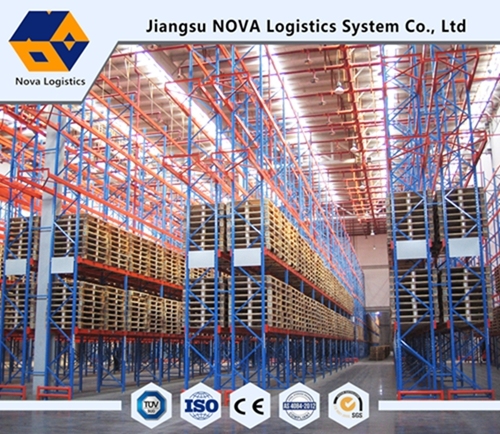

High Quality Selective Warehousee Pallet Racking

Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure;

The upright made by continuous punching and rolling; The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks.

There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts. The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg.

Its convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift balance-weight forkliftcommon forklift and stackers can be used to load and unload goods.

Steel panels, wooden panels and decking are also available for putting on beams instead of pallets.

Pallet racking is the most common storage system which is used in fields of manufacturing industrythe third part logisticsdistribution centerssupermarket and so on. Pallet racking is the first choice when building High position warehouses and AS/RS System.

Specification:

Upright: NH1 TYPE (80 TYPE)NH2A TYPE(90A TYPE)NH2B TYPE(90B TYPE)NH3 TYPE(100 TYPE)

NH4 TYPE(120 TYPE)NH5 TYPE(140 TYPE)

NH6 TYPE(160 TYPE) or customized by clients

Beams are divided into Box beams and Step beams

Pallet support bar: Regular type and cut-in adjustable types

Others:
Design	professional design for your requirment:include choose the correct type for you,CAD drawing
Price	directManufacture price,according to your quantity,payment
Package	standard export package
Payment	30%ppaid T/T,L/C at sight FOB,CNF,CIF
Shippment	FOB NANJING,FOB SHANGHAI
	CNF/CIF destination port
Quick Delivery.	Within25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
Certification	CE:if you need,can make for you

AFQ:

1. What makes you differentwith others?

1) Our Excellent Service

For a quick, no hassle quote just send email to us

We promise to reply with a price within 24 hours - sometimes even within the hour.

If you need an advice, just call our export office at 0086-25-51873961, we will answer your questions immediately.

2)Our quick manufacturing time

For Normal orders, we will promise to produce within15 days.

As a manufactory, we can essure the delivery time according to the formal contract.

3)Our Special Export Design

We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.

4)Our Warranty Time

The High Standards in the Design and Manufacturing ensure us to supportthe products with a 10-Year Warranty Time for your normaluse, it is the Longest Manufacturer's Warranty !

2. Whatis delivery times?

This depends on the product. Typically standard products are delivered within 20 days.

The delivery time of the special products is according to the time of setting up of the tooling.

3.Whatis the term of payment?

1) T/T payment.2) LC

4. May I know the status of my order?

Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

5. Are samples available?

Yes, we can send some sections of samples for your reference by expss.

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
