1.5tx3levels P88X68mm 75mm Adjustable Q235B Metal Warehouse Pallet Rack

1.5Tx3Levels P88x68mm 75mm Adjustable Q235B metal Warehouse Pallet Rack


Let's have general idea aobut the rack layout in your warehouse as per pallet


Techincal Data for Warehouse Pallet Rack System

Style	Pallet storage warehouse rack system
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of Rack	Standard Pallet 1200x800,1200x1000mm Depth:1000MM x Width: 2700MM Height: pitch is adjusted by increments of 75mm
Beam Range	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright Range	80*60; 88*68; 90*60; 100*68; 120*68mm, Thickness: 1.5~3.0mm
Colour	RAL SYSTEM Upright frame-Blue; Beam-Orange
Weight Capacity	Rated 1500KG/Level
Package	Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper
Export Area	South America; Middle America; South(South East) Asia; Africa; Middle East
MOQ	2 units( 1 start unit+1 extension unit)
Lead time	1, 18~21days for one container 2, 25~27days for less than one container

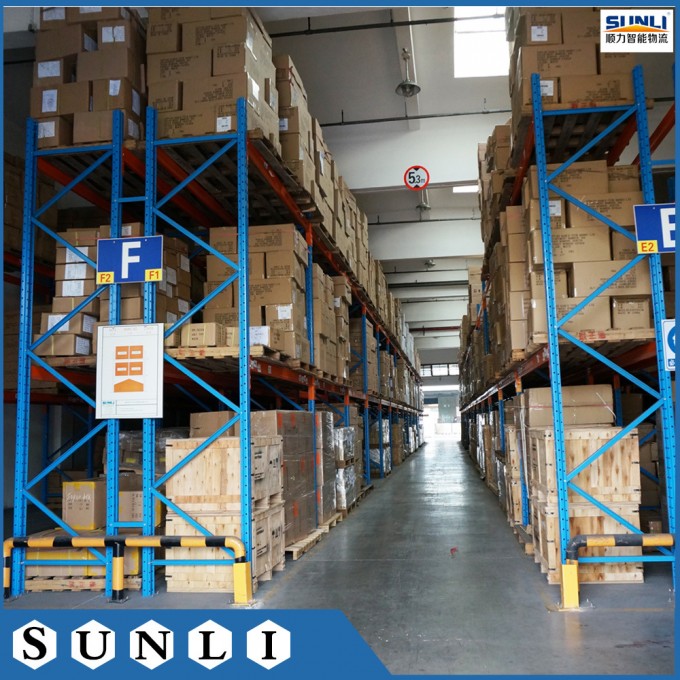

Detailed pictures for pallet storage rack





SAMPLE PROJECT AS PER PALLET SYSTEM RACK





Our Services Scope

Pallet storage	Warehouse Rack	Double deep pallet rack
	Radio shuttle rack	Double deep pallet rack
Accessories	Long span shelving rack	Mezzanine Rack System
Long items	Cantilever rack	Stackable Pallet Rack

Please inform us following information to get prompt offer for pallet rack

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for matal rack as per pallet storage?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
