Selective Storage Warehouse Pallet Racking

Selective Storage Warehouse Pallet Racking

Material	Q235B steel cold roll forming for pallet rack
Loading	max 4000kg per layer
Size	1, Length: 3600mm2, Depth: 800-1200mm3, Height: max 9000mm
Section	1, Beam: 80*45/90*45/100*45/110*45/100*502, Upright: 80*60/88*68/90*60/100*68/110*683, Thickness: 1.5-2.5mm
Features	1, Most widely used storage rack, permits only one deep pallet load and back-to-back structure;2, Make all pallets accessible from the aisle;3, Rack loading are topped with cross beams or metal decking, MDF,4, Fro all indsutry warehouse
Adjustable	75mm per pitch
Storage style	First in- first out, first levels can be on the ground
MOQ	50SETS

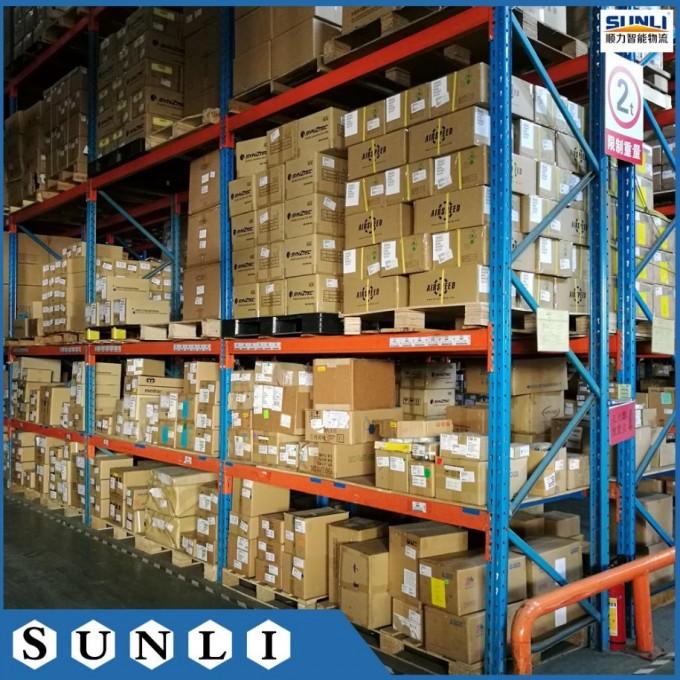

Detailed Image for warehouse storage racking




What we can do compared with other supplier:

Beam	1,Double C-shaped tubes roll-formed without welding(H45mm) To make bigger loading section when beam is spaded out 2,4 Corrugated edges along section( for 2 sides) To make beams not easy to bend during rated capacity
Upright	3,Corrugated edges ( 4pcs)
Anti-shock resistance	4,Suitable for harsh working condition

Our Services Scope

Pallet storage	Warehouse Rack	Double deep pallet rack
	Radio shuttle rack	Double deep pallet rack
Accessories	Long span shelving rack	Mezzanine Rack System
Long items	Cantilever rack	Stackable Pallet Rack

Please inform us following information to get prompt offer for warehouse racking

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for warehouse storage pallet rack ?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
