Heavy Duty Steel Box Beam Pallet Racking

Storage Heavy Pallet Racking:

Racking is taken as a suitable and economical storage solution:

1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;

2. We supply quite big sections of upright to suit special needs;

3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;

4. Epoxy powder coated and galvanized surface treamment to pvent against corruption;

5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

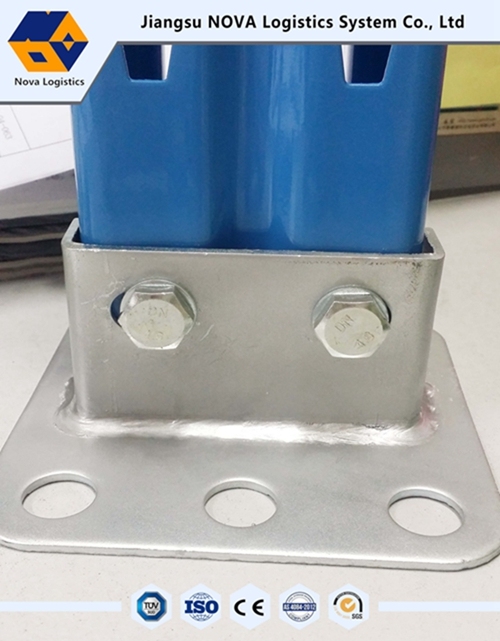

Upright: NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.
Beams are divided into Box beams and Step beams.
Sectional sizes of box beams include: Y80, Y100, Y110, Y120, Y140,Y160

Sectional sizes of step beams include: P80,P100*1.8,P100*2.0,P125*1.8,P125*2.0
Pallet support bar: Regular type and cut-in adjustable types.

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.
Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.

1. Upright:	NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.
2. Beams	Beams are divided into Box beams and Step beams
3. Load Capacity & Dimension:	Loading capacity: 500-8, 000 kgs UDL/beam level. Height: 2, 000-11, 000mm Depth: 500-1, 500mm Length: 1, 000-4, 000mm Specail sizes also avaiable to specific storage needs.
4. Matieral and Finish	High-quality steel Q235 High-quality Powder Coating Finish or Galvanized.
5. Pallet support bar	regular type and cut-in adjustable types

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.

Thank you for your attention! If you have any concern or questions, kindly contact us at below Chat Window, we all help you out at the earliest.
