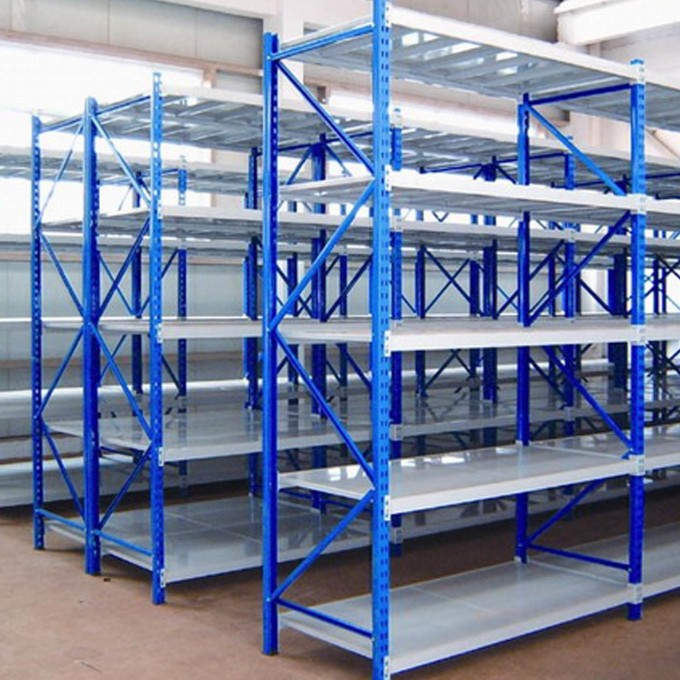

Steel Medium Duty Rack for Warehouse Storage System

Steel Medium Duty Rack for Warehouse Storage System
Features:
1. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.

2. Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.

3. Fully adjustable shelf height.

4. Very easy to install and dismantle.

5. Rapid handling and direct access of almost all types of goods.

6. Maximizes space use in any storeroom configuration while retaining optimum productaccessibility.

7. Strength and rigidity pvents compssion damage to goods.

Parameters:

Loading Capacity:300-500kgs UDL/level as general, up to 1,000kgs UDL/level as special request
Racking Height:1,800-3,000mm as general, up to 11,000mm as special request
Racking Depth:300-600mm as general, up to 1,200mm as special request
Beam Length:1,200-2,000mm as general, up to 3,000mm as special request
Racking Finish:Powder Coated Finish or Galvanised Finish for Steel Panels and upright frame


Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing

B) The size of shelf (length/mm*width/mm*height/mm)

C) How many bays you want

D) The loading capacity of each layer

E) The RAL color you want

F) The layers of each shelf

Section of Upright (mm)	Length (mm)	Depth (mm)	UDL (kg)
55x55x1.5	1200	470	300
55x55x1.5	1200	600	350
55x55x1.5	1200	720	350
55x55x1.5	1200	920	450
55x55x1.5	1200	1180	450
55x55x1.5	1500	470	200
55x55x1.5	1500	600	300
55x55x1.5	1500	720	300
55x55x1.5	1500	920	400
55x55x1.5	1500	1180	400
55x55x1.5	1800	470	250
55x55x1.5	1800	600	250
55x55x1.5	1800	720	250
55x55x1.5	1800	920	400
55x55x1.5	1800	1180	400
Note: 1) Standard height are 1500mm, 1800mm, 2000mm, 2400mm, 3000mm, and the pitch is 50mm. 2) Please contact the supplier if you want non-standard specification.
