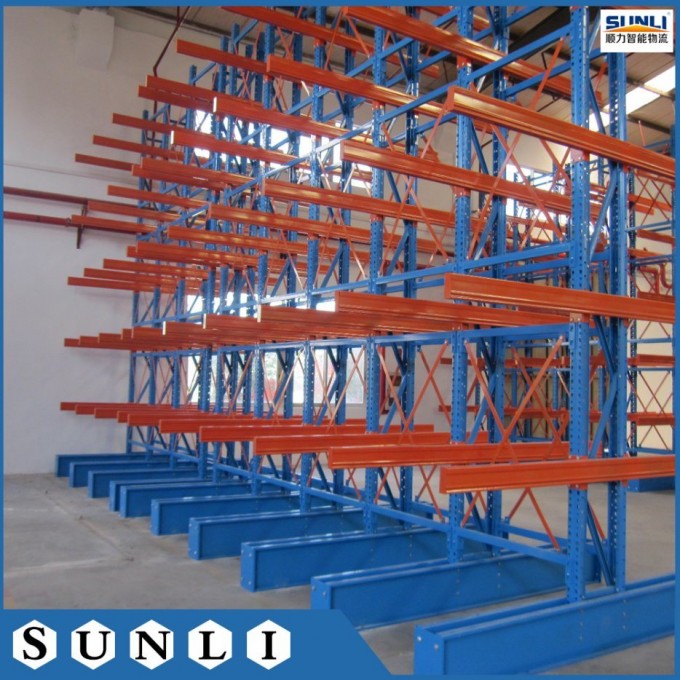

| Style | long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage |
Main Components | 1, Vertical column( adjusted pitch of 140mm) 2, Column basis( W300*45/45mm) 3, Cantilever arm( Hanger 150mm) 4, connector/ "x"connector between columns |
Components structure | 1, vertical column: C/C tubes welded 2, column basis: C/C tubes bolted 3, cantilever arm: bended plate with hanger |
| Component ranges | 1, vertical column: 300*90( 45+45mm) 2, Column basis: 300*45 |
| Thickness | Column/basis/cantilever arm: 2.0mm~4.0mm Connector: 1.5~1.8MM |
| Cantilever arm length | Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm) |
| Column length | Cantilever arm length + extra 400~500MM |
| MOQ | 2 units |
| The width between columns | 400MM~1500MM ( narrow space will make stronger loading on cantilever ) |
| Material | Made of Q235B steel |
| Lead time | 25~30days( regardless of purchase quantities) |
| Stock | We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed) |
| Colour | RAL 5015( blue) + RAL 2004(Orange) |
