6mx1m Double Side 1000kg Long Span Cargo Storage Cantilever Rack

6mx1m Double Side 1000KG Long Span Cargo Storage Cantilever Rack




Main Feature&Components for Sunli Cantilever rack

The "Christmas tree" theory behind cantilever rack is what makes it so appealing.
There are four main parts to the cantilever rack concept:

+ Uprights: vertical columns in the back that are bolted to a base
+ bases: To maintain the balance during weight-laden from cantilever arms
+ Arms: strong "limbs" extending out from the uprights
+ Braces: the hardware holding the arms, uprights, and base together

Technical Description for cantilever rack system

Style	long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage
Thickness	Column/bases/cantilever arms: 2.0mm~4.0mm Connectors/braces: 1.5~1.8MM
Cantilever arm length	Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm)
Column length	Cantilever arm length + extra 400~500MM
MOQ	2 units
The width between columns	400MM~1500MM ( narrow space will make stronger loading on cantilever )
Material	Made of Q235B steel
Lead time	25~30days( regardless of purchase quantities)
Stock	We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed)
Colour	RAL 5015( blue) + RAL 2004(Orange)
Load	Load capacity is 500kg to 1TON per arm

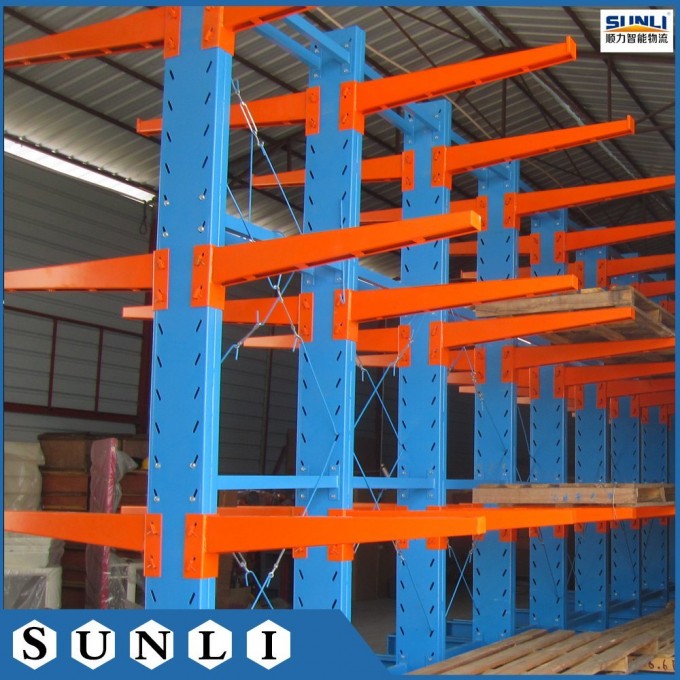

Detailed Image for Double Side cantilever rack



Different project for cantilever rack system







Please inform us following information to get prompt offer for cantilever rack system

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for double side cantilever rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
