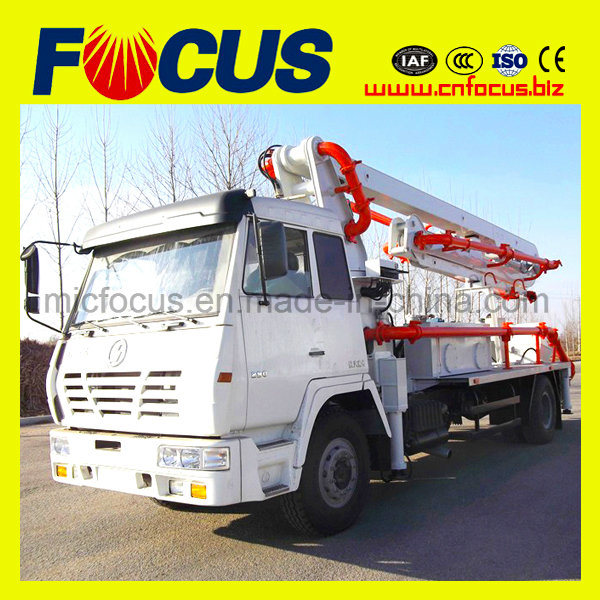

24m Concrete Pump Truck with Boom

24m Concrete Pump Truck with Boom

Our 24m concrete pump truck:
1.for concrete pumping
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO CE certified


Why would our clients choose FOCUS concrete pump truck?
1.large pumping capacity with high efficiency;
2.light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3.low oil consumption, economic engineered;
4.full hydraulic system guarantee stable pumping performance;


Features of FOCUS Portable/Mobile Concrete pump truck:
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
Features of FOCUS Portable/Mobile Concrete pump truck:
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
4. full hydraulic system guarantee stable pumping performance;

Our 24m Boom Portable Truck-mounted Concrete Pump Truck Main Parameters

Model		HDT5180THB-24/3	Chassis Model			SX1165TN561
Total Weight		18460kg	Driving Mode			4x2
Max. Driving Speed		92km/h	Driver Cab with Air Conditioner, Sleeping Room
			Wheel base	No.1 & No.2				5600 mm
shape	Total Length	13740mm		No.2 & No.3				1310mm
	Total Width	2490mm	Wheel Tread	Front				2065mm
	Total Height	4000mm		Rear				1850mm
Engine	Engine Model	Weichai Power WP10.290	Tire Size					12.00R20 Radial Tire
			Mini. Turning Radius					8800mm
			Driving Brake					Double Loop Air Brake
	Power	290PS(213KW)	Boom System		Model			3 section, Folded, Hydraulic
	Max. Torque	1055NM			Max. Height			23.1m
	Emission Standard	EU III			Pipe Diameter			DN125
	Displacement	9726ML			Section1boom		Length	8220
Pump Delivery System	Driving Mode	Hydraulic					Rotation	910
	Oil cylinder DiameterxStroke	φ140mmx2000mm			Section2boom		Length	5680mm
	Delivery cylinder DiameterxStroke	φ230mmx2000mm					Rotation	1800
	Distribution Vale	S Valve Mode			Section3boom		Length	5215mm
	Concrete Output in Theory	100/70m3/h					Rotation	2680
					Rotation Range			Any Angles
	Pump Delivery Times in Theory	19times/min			Max. Working Radius			19.1 m
					Max. Working Height			23.1 m
					Hydraulic System Pressure			32MPa
			Lubrication					Grease self-lubrication
	Bucket Capacity	0.7M3	Oil Tank Capacity					1000L
	Outrigger span	4550x2280x6030	Pipe Clean Mode					Water/Dryer
