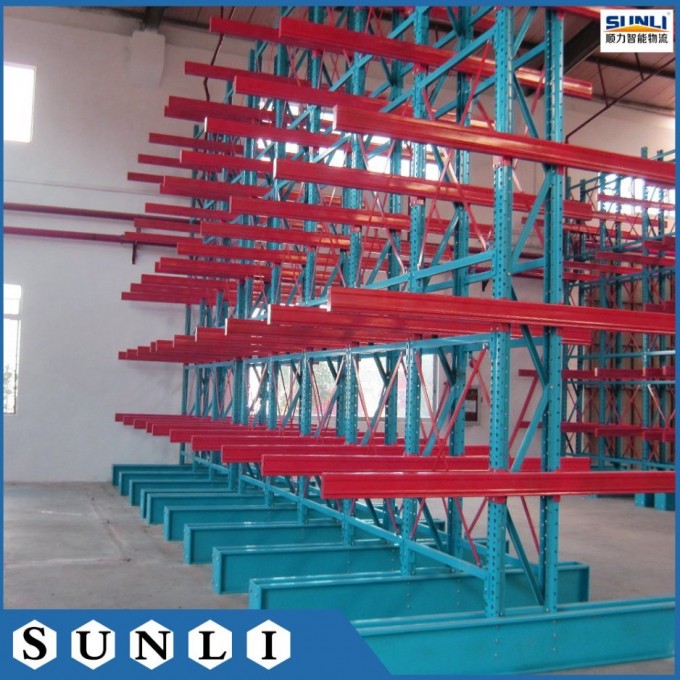

I-Beam Storage Double Side Medium Duty Cantilever Rack

I-Beam Storage Double Side Medium Duty Cantilever Rack


Main Feature&Components for Sunli Cantilever rack

The "Christmas tree" theory behind cantilever rack is what makes it so appealing.
There are four main parts to the cantilever rack concept:

Uprights: vertical columns in the back that are bolted to a base
bases: To maintain the balance during weight-laden from cantilever arms
Arms: strong "limbs" extending out from the uprights
Braces: the hardware holding the arms, uprights, and base together


Technical Description for cantilever storage rack

Style	long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage
Thickness	Column/bases/cantilever arms: 2.0mm~4.0mm Connectors/braces: 1.5~1.8MM
Cantilever arm length	Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm)
Column length	Cantilever arm length + extra 400~500MM
MOQ	2 units
The width between columns	800MM ( narrow space will make stronger loading on cantilever )
Material	Made of Q235B steel
Lead time	25~30days( regardless of purchase quantities)
Stock	We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed)
Colour	RAL 5015( blue) + RAL 2004(Orange)
Load	Load capacity is 500kg to 1TON per arm

Please inform us the listed questions in your inquiry for quick quotation:

A) The warehouse outline drawing
B) The size of shelf (length*width*height)
C) How many layers you want
D) The loading capacity of each layer
E) The RAL color you want
