Does your warehouse stock sheets of metal or planks of wood?
How about plumbing pipes or mattresses?

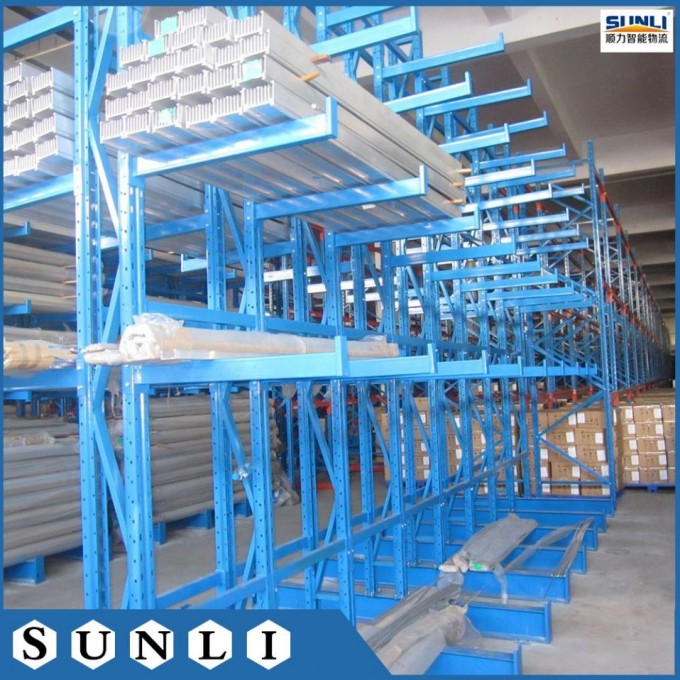

Many companies have successfully opted for cantilever rack to store their oddly shaped merchandise.
Some cantilever racks are constructed especially for a certain type of merchandise, for example, furniture cantilever racks.

Main Feature&Components for Sunli Cantilever rack
The "Christmas tree" theory behind cantilever rack is what makes it so appealing.
There are four main parts to the cantilever rack concept:

Uprights: vertical columns in the back that are bolted to a base
bases: To maintain the balance during weight-laden from cantilever arms
Arms: strong "limbs" extending out from the uprights
Braces: the hardware holding the arms, uprights, and base together

Style	long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage
Thickness	Column/bases/cantilever arms: 2.0mm~4.0mm Connectors/braces: 1.5~1.8MM
Cantilever arm length	1000MM Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm)
Column length	Cantilever arm length 1400MM (+ extra 400~500MM)
MOQ	2 units
The width between columns	1200MM ( 400MM~1500MM) ( narrow space will make stronger loading on cantilever )
Material	Made of Q235B steel
Lead time	25~30days( regardless of purchase quantities)
Stock	We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed)
Colour	RAL 5015( blue) + RAL 2004(Orange)
Load	Load capacity is 500kg(can make 1TON per arm

Please let us know specifications of cantilever rack system

or goods store details( weight and specifications) to be dealt with
