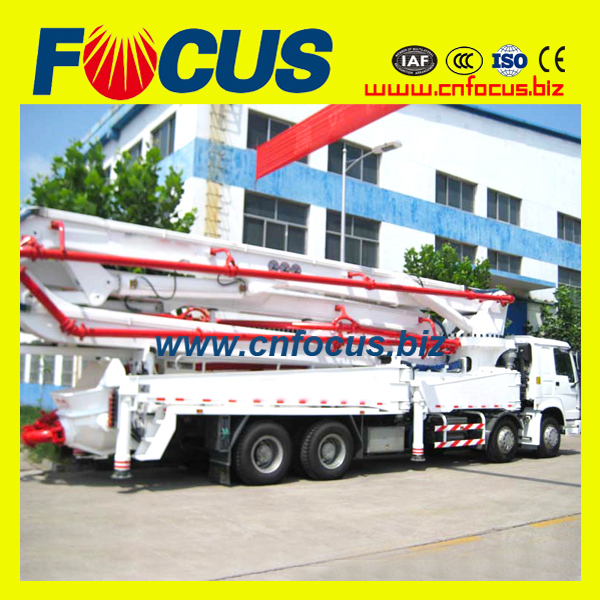

FOCUS24m to 52m Boom Concrete Pump Truck:
All Sizes:24m, 37m, 39m, 42m 45m, 48m 52m
Main Features of FOCUSConcrete Pump Truck:
1. Large pumping capacity with high efficiency;
2. Light-weighed and optimized design enables FOCUSconcrete pump trucksmall occupation of ground area;
3. Low oil consumption, economic engineered;
4. Full hydraulic system guarantee stable pumping performance;
Parameter | unit | HDT5380THB-48/5 | HDT5420THB-52/5 | |
output in theory | m3/h | 125 | 125 | |
bucket volume | L | 700 | 700 | |
height of top surface of bucket | mm | 1400 | 1400 | |
model of distribution valve | S Valve | S Valve | ||
max. operation radius | m | 43.7 | 47.8 | |
max. operation height | m | 47.7 | 51.8 | |
max. operation depth | m | 34.3 | 39.8 | |
open height of boom | mm | 9065 | 9400 | |
distance between front landing legs | mm | 9780 | 10295 | |
diameter of delivery pipe | mm | 125 | 125 | |
quantity of boom | 5 | 5 | ||
rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 | |
wire line control distance | m | 33 | 33 | |
remote control distance | m | 200 | 200 | |
max. speed | km/h | 89 | 80 | |
min. turn radius | mm | 11900 | 12500 | |
brake distance | m | 10 | 10 | |
chassis model | ISUZU CYH51Y | ISUZU CYH51Y | ||
max. engine output power | kw | 287(2200r/min) | 259(2100r/min) | |
max. engine output torque | n.m | 1863(1100r/min) | 1460(1100r/min) | |
max, gradient ability | % | 37 | 37 | |
fuel consumption | L/100km | 38 | 38 | |
out dimension (LxWxH) | mm | 13300x2500x4000 | 13990x2500x4000 | |
total weight | kg | 38000 | 42000 | |
