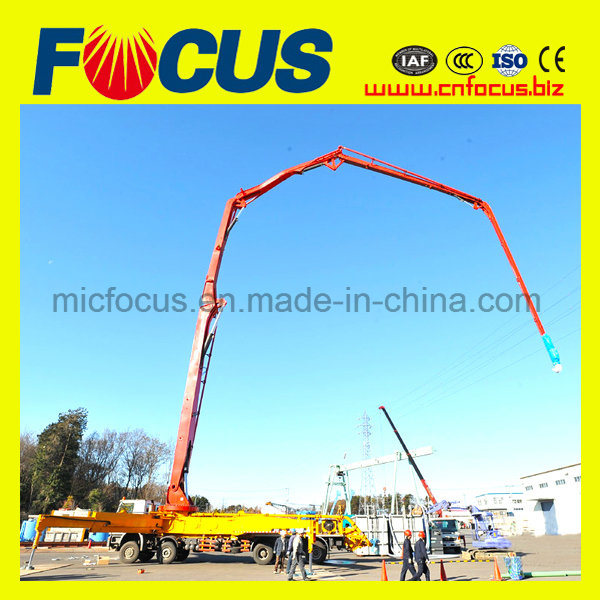

52m Large Concrete Pump Truck From Factory with Good Price

52m Large Concrete Pump Truck From Factory with Good Price

FOCUS concrete pump truck/ truck concrete pump:
1. Good pumping performance;
2. ISUZU or HOWO Chassis, low oil consumption, great mobility;
3. ISO CE certified.


Sizes of FOCUSconcrete pump truck/ truck concrete pump:
24m, 37m, 39m, 42m, 45m, 48m, 52m


Why would our clients choose FOCUS concrete pump truck?
1. Large pumping capacity with high efficiency;
2. Light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. Low oil consumption, economic engineered;
4. Full hydraulic system guarantee stable pumping performance;

Parameter	unit	HDT5380THB-48/5	HDT5420THB-52/5
output in theory	m3/h	125	125
bucket volume	L	700	700
height of top surface of bucket	mm	1400	1400
model of distribution valve		S Valve	S Valve
max. operation radius	m	43.7	47.8
max. operation height	m	47.7	51.8
max. operation depth	m	34.3	39.8
open height of boom	mm	9065	9400
distance between front landing legs	mm	9780	10295
diameter of delivery pipe	mm	125	125
quantity of boom		5	5
rotary angle of each boom	°	91/180/180/180/270	90/180/180/180/270
wire line control distance	m	33	33
remote control distance	m	200	200
max. speed	km/h	89	80
min. turn radius	mm	11900	12500
brake distance	m	10	10
chassis model		ISUZU CYH51Y	ISUZU CYH51Y
max. engine output power	kw	287(2200r/min)	259(2100r/min)
max. engine output torque	n.m	1863(1100r/min)	1460(1100r/min)
max, gradient ability	%	37	37
fuel consumption	L/100km	38	38
out dimension (LxWxH)	mm	13300x2500x4000	13990x2500x4000
total weight	kg	38000	42000
