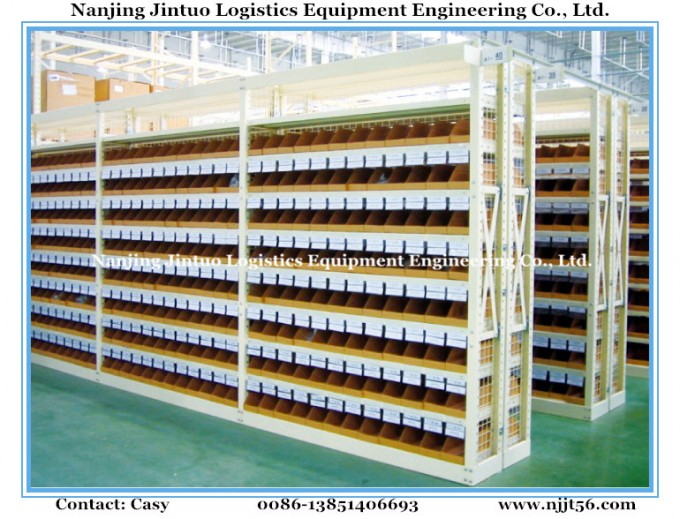

Adjustable Metal Medium Duty Steel Rack for Warehouse Storage

Adjustable metal Medium Duty Steel Rack for Warehouse Storage
Medium Duty Rack is the perfect solution to store from small components to heavy cartons, commonly 400-800kg/level. It is fast and easy to assemble, and uses a modular design with a bolt free lock-in system which requires no special tools, giving you maximum storage in minutes in your available space.

1. Features:
· Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
· Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
· Fully adjustable shelf height.
· Very easy to install and dismantle.
· Rapid handling and direct access of almost all types of goods.
· Maximizes space use in any storeroom configuration while retaining optimum product accessibility.

2. Load Capacity & Dimension:
· Loading capacity: 200-800 kgs UDL/layer, bigger capacity available to special needs.
· Height: 1, 000-6, 000mm
· Depth: 400-1, 500mm
· Length: 1, 500-2, 700mm
· Special sizes also available to specific storage needs.

3. Main Parts Specs:
· Upright section: 55*47*1.5, 55*47*2.0, etc.
· Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
· Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
· Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

4. Material:
· High-quality steel from BAO Steel Co. Ltd, the largest steel manufacturer in China.

5. Finish:
· High-quality Powder Coating.

6. Services:
Our free services include consultations and sample CAD layouts of your proposed rack system. Don't hesitate to consider reviewing the racking systems on site or at our headquarters. Get the racking system you need at the best price guaranteed.


7. Contact information
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278

Section of Upright (mm)	Length (mm)	Depth (mm)	UDL (kg)
55x55x1.5	1200	470	300
55x55x1.5	1200	600	350
55x55x1.5	1200	720	350
55x55x1.5	1200	920	450
55x55x1.5	1200	1180	450
55x55x1.5	1500	470	200
55x55x1.5	1500	600	300
55x55x1.5	1500	720	300
55x55x1.5	1500	920	400
55x55x1.5	1500	1180	400
55x55x1.5	1800	470	250
55x55x1.5	1800	600	250
55x55x1.5	1800	720	250
55x55x1.5	1800	920	400
55x55x1.5	1800	1180	400
Note: 1) Standard height are 1500mm, 1800mm, 2000mm, 2400mm, 3000mm, and the pitch is 50mm. 2) Please contact the supplier if you want non-standard specification.
