Detailed Description
FOCUS co
ncrete pump truck/ truck co
ncrete pump:
1. Good pumping performance;
2. ISUZU Chassis, low oil consumption, great mobility;
3. ISO certified.
Why would our clients choose FOCUS co
ncrete pump truck?
1. Large pumping capacity with high efficiency;
2. Light-weighed and optimized design enables FOCUS co
ncrete pump truck small occupation of ground area;
3. Low oil consumption, eco
nomic engineered;
4. Full hydraulic system guarantee stable pumping performance;
| Parameter | unit | HDT5380THB-48/5 | HDT5420THB-52/5 |
| output in theory | m3/h | 125 | 125 |
| bucket volume | L | 700 | 700 |
| height of top surface of bucket | mm | 1400 | 1400 |
| model of distribution valve | | S Valve | S Valve |
| max. operation radius | m | 43.7 | 47.8 |
| max. operation height | m | 47.7 | 51.8 |
| max. operation depth | m | 34.3 | 39.8 |
| open height of boom | mm | 9065 | 9400 |
| distance between front landing legs | mm | 9780 | 10295 |
| diameter of delivery pipe | mm | 125 | 125 |
| quantity of boom | | 5 | 5 |
| rotary angle of each boom | ° | 91/180/180/180/270 | 90/180/180/180/270 |
| wire line control distance | m | 33 | 33 |
| remote control distance | m | 200 | 200 |
| max. speed | km/h | 89 | 80 |
| min. turn radius | mm | 11900 | 12500 |
| brake distance | m | 10 | 10 |
| chassis model | | ISUZU CYH51Y | ISUZU CYH51Y |
| max. engine output power | kw | 287(2200r/min) | 259(2100r/min) |
| max. engine output torque | n.m | 1863(1100r/min) | 1460(1100r/min) |
| max, gradient ability | % | 37 | 37 |
| fuel consumption | L/100km | 38 | 38 |
out dimension
(LxWxH) | mm | 13300x2500x4000 | 13990x2500x4000 |
| total weight | kg | 38000 | 42000 |

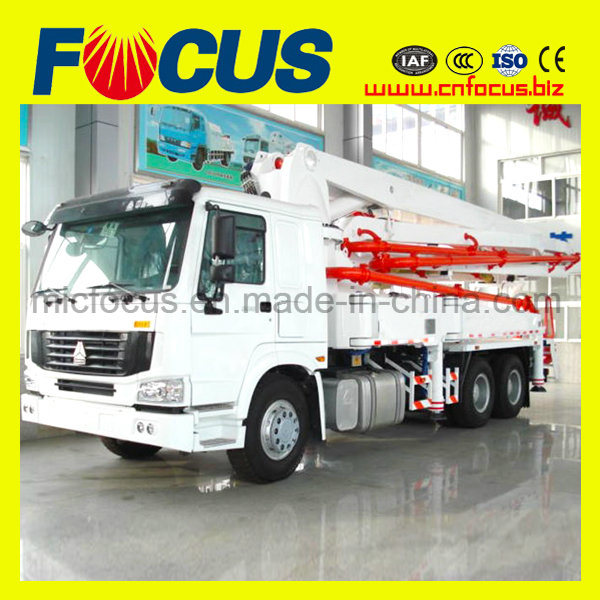

Product Image
