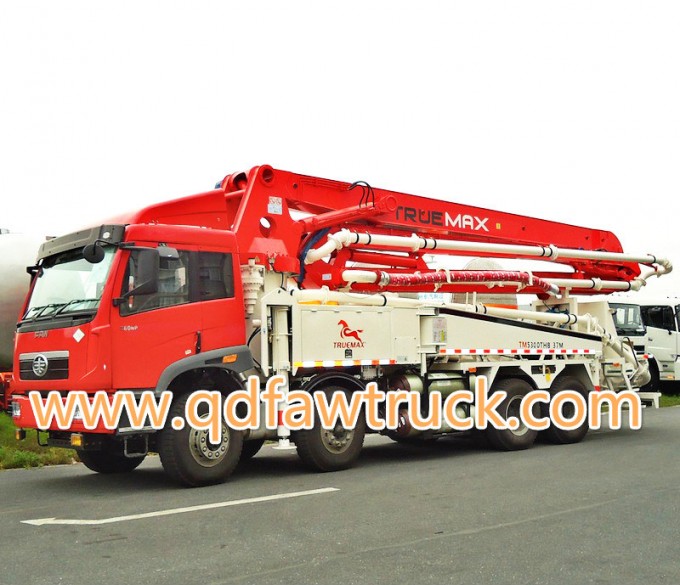

Faw / HOWO 48m Concrete Pump Truck

FAW/ HOWO 48m Concrete Pump Truck

Company information:
We're one professional manufacturer which refitting special truck and trailer in China,established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development.Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We'reone of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises.We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.


We keep good relations with main truck manufactrers in China. And we can supply all brands dump truck made in China. HOWO, SHACMAN, BEIBEN, DONGFENG, SINOTRUK, BEIBEN, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.

Outline dimensions (Lx W xH )mm 11810X; 2500x3990
Fuel type Diesel
Engine emission standard Euro 2/3
Displacement/Powerml/kW 12100/279
Steering type ZF8098
No. Of axle 3
Wheel base: Mm 1800+4600+1370
No. Of spring leaf (front/rear) 2+3/9
Tire 12.00R20
Track (front/rear)mm 2034/1831
No. Of tire (exclude spare tire) 12
Total vehicle weightkg 33500.

Crew in cab 2
Approach angle/Departure angle 21° /12°
Front overhang /Rear overhangmm 1360/3380
Max. Speedkm/h 94
Min. Ground clearancemm 270
Max. Grade-ability 38%
Fuel consumption per 100kmL/100km 40
Manufacturer SINOTRUK
Engine Model WD615.69
Manufacturer SINOTRUK
Mas pump hight: 42m
Also have 48m, 52m for your choice.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.We also have cooperated several times with the third party named TCI from UK. They can inspect the trucks and trailers producing and shipping after getting your authorization.

Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Q: How could I trust your company?
A: We are the official authority company by SINOTRUK & FAW Qingdao Automobile Company.

Model			HTC5291THB38X-4Z
Pumping system	Max. Theor. output	m3/h	120
	(/) Max. Theor. concrete output Pressure(high/low pssure)	MPa	8
	Rated working pssure	MPa	32
	(/) Pumping frequency(high/low pssure)	min-1	26
	Hopper capacity	L	600
	Filling height	mm	1600
	Hydraulic system type		Open loop
	Distribution valve		SS valve
	×Oil cylinder dia.×stroke	mm	Φ130×1900
	×Concrete cylinder dia.×stroke	mm	φ260×1900
	Hydraulic oil cooling		Air cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Placing boom	Structure type		37X-4Z
	Placing depth	m	37
	Horizontal distance	m	34
	Placing depth	m	21
	Slewing angle		365°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	8500
	(××)Outriggers span (front×rear×side)	mm	6200×7200×8120
Chassis and the whole machine	Chassis model		CA5311N4647C()
	Wheelbase	mm	4600+1350,4575+1400
	Engine type		WP10.380
	Engine power	kW/(r/min)	247/2000
	Oil tank cubage	L	400
	Tail gas exhaust standard		IV
	Total weight	kg	28870
	(××) Overall dimensions	mm	12000×2490×3850
Others	Lubrication mode		Automatic lubrication
	Oil tank volume	L	600
	Control mode		+Manual+remote control
	Maximum water pssure	MPa	0.7
	Water tank volume	L	500
	Pipe cleaning mode		/Water cleaning/dry cleaning
