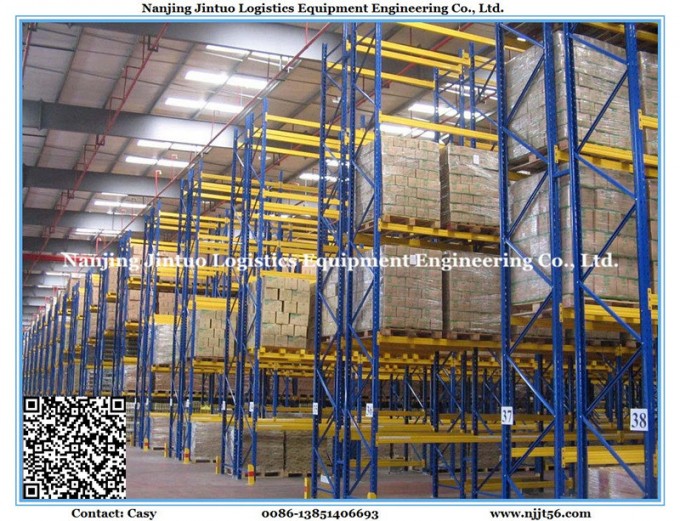

Warehouse Metal Storage Beam Racking, Heavy Duty Rack

Warehouse metal Storage Beam Racking, Heavy Duty Rack
Heavy Duty Rack/ Beam Racking is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.

Features:
1. Pallets can be located, accessed and moved individually.
2. Rapid handling of almost all types of palletized goods.
3. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
4. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
5. Strength and rigidity pvents compssion damage to goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.

Parameters:

Loading Capacity: Up to 4, 500 kgs UDL/level
Racking Height: Up to 11, 000mm
Racking Depth: 700-1200mm
Beam Length: Up to 3600mm
Racking Finish: Powder Coated Finish or Galvanised Finish for Post & Bracing.


For a quick price, please answer following questions:
1. The CAD drawing of the warehouse (if available)

2. Size (Width, Depth, Height)

3. How many loads/levels

4. Quantity

5. Port of destination (for a CFR or CIF price basis)/ or FOB Shanghai

6. Loading capacity of each layer


Contact information

Name: Casy
Tel: (+0086)-13851406693, (0086)-025-85363177
Fax: 0086-025-86109278

Remark:
We are very professional in producing various pallet racking, long span shelving, cantilever racks, rivet shelving, drive in racks, steel mezzanine, carton flow racking and other related storage equipments.

frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 x 70; 100 x 65; 120x87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) , popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 x 50; 100 x 50;110x50; 120 x 50; 140 x 50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	- Pitch: 75mm - Delivery time: 14-20 days according to quantity - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts & nuts, base plate, etc) - Packing:stretch film & carton - Surface treatment: powder coated, galvanization - Production capacity: 50,000T/month - Available in various colors/specifications/sizes
