Metal Drive in Pallet Rack for Warehouse Storage

metal Drive in Pallet Rack for Warehouse Storage
Drive-in Racking is suitable for storing goods of few varieties by great quantity. Fork lifer may go into the passage of each row of the rack improving the utility ratio of warehouse.
Using minimal space for access aisles and lanes, Drive-in Racking provides a high-density and very space-efficient bulk storage system. With the first pallet into a lane being the last out, stock selectivity is restricted, but when loads are delivered and dispatched in batches, this is not a difficulty. Pallets are stored on joist in the depth of the racking and trucks enter to deposit or retrieve loads.

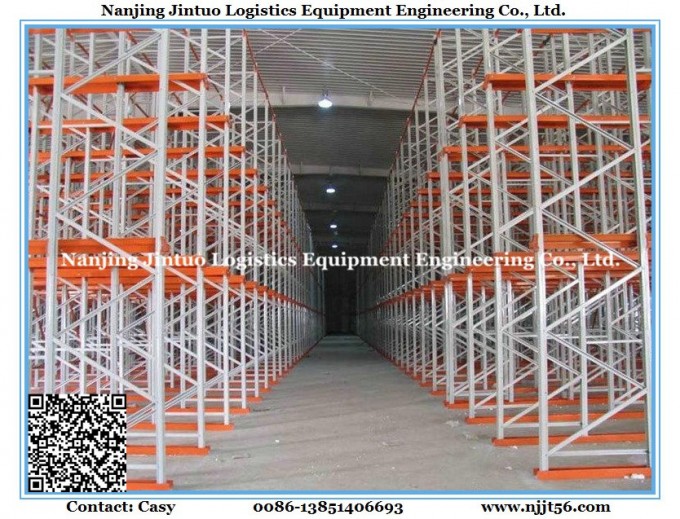

Drive in pallet rack
1. Loading capacity: 2500kg/layer
2. Colors: Available in various of colors
3. Size: L2500*W1200*H5000mm, Customized size available

Features:
1. Made of continuous rows of upright frames interconnected by spacers
2. Forklift trucks drive along each aisle (lane) to store or retrieve pallets
3. Each aisle consists of several levels of pallet support rail
4. Pallets are placed on the pallet support rail one after another along the aisles
5. Top and back bracings are used to stabilize system structure
6. All components are epoxy powder coated except the galvanized footplates
7. Accessories include shim, upright protector, forklift guide rail

Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing

B) The size of shelf (length/mm*width/mm*height/mm)

C) The layers of each shelf

D) The loading weight of each layer

E) The RAL color you want

Contact Information:
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278

Products	Heavy Duty Pallet Rack	Medium/Light Duty Rack
Loading Capacity	1000-5000KG/layer	100-1000KG/layer
Specification	Main Racking: L2000*D1200*H4800mm*4layers (Designed by different demands) Beam:L1800~5000mm Layer board: 1.5~2.5mm Customized sizes and colors are welcomed	Main Racking: L1500*D1200*H3000mm*4layers (Designed by different demands) Beam: L1200~2500mm Layer board: 1.0~2.0mm Layers: steel panel/net or wood veneer Customized sizes and colors are welcomed
