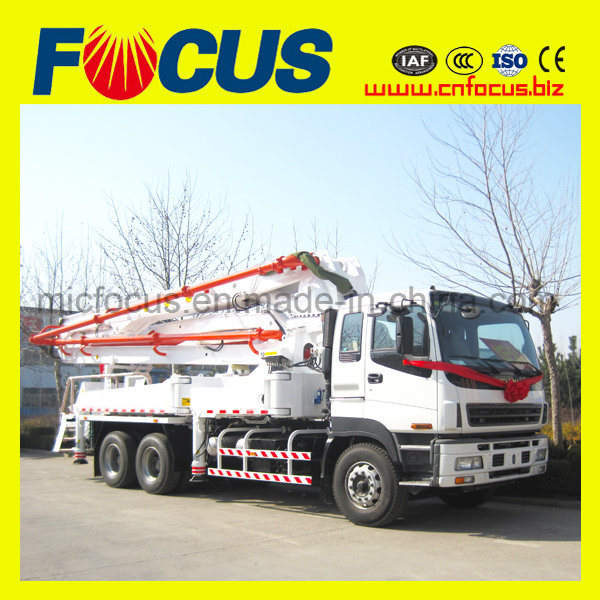

Radio Remote Control 48m 52m Concrete Pump Truck with Boom

Radio Remote Control 48m 52m Concrete Pump Truck with Boom


Bringing in advanced experience both at home and abroad, FOCUS boomconcrete pump is developed by applying modern advanced computer simulation techniques and systematically analyzing the influence condition of the boom fatigue life because of the change of various parameters such as stress, displacement, natural frequency etc. The series products won many patents on boom structures optimization and hydraulic systems design.

Advantages of Focus Boom Concrete Pump:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO CE certified.


Why would our clients choose Focus Boom Concrete Pump?
Σlarge pumping capacity with high efficiency;
Σlight-weighed and optimized design enables FOCUS boomconcrete pump truck small occupation of ground area;
Σlow oil consumption, economic engineered;
Σfull hydraulic system guarantee stable pumping performance;


Parameters ofFocus 48m,52m Boom Concrete Pump:

Parameter	Unit	HDT5380THB-48/5	HDT5420THB-52/5
Output in theory	m3/h	125	125
Bucket volume	L	700	700
Height of top surface of bucket	mm	1400	1400
Model of distribution valve		S Valve	S Valve
Max. operation radius	m	43.7	47.8
Max. operation height	m	47.7	51.8
Max. operation depth	m	34.3	39.8
Open height of boom	mm	9065	9400
Distance between front landing legs	mm	9780	10295
Diameter of delivery pipe	mm	125	125
Quantity of boom		5	5
Rotary angle of each boom	°	91/180/180/180/270	90/180/180/180/270
Wire line control distance	m	33	33
Remote control distance	m	200	200
Max. speed	km/h	89	80
Min. turn radius	mm	11900	12500
Brake distance	m	10	10
Chassis model		ISUZU CYH51Y	ISUZU CYH51Y
Max. engine output power	kw	287(2200r/min)	259(2100r/min)
Max. engine output torque	n.m	1863(1100r/min)	1460(1100r/min)
Max, gradient ability	%	37	37
Fuel consumption	L/100km	38	38
Out dimension (L*W*H)	mm	13300*2500*4000	13990*2500*4000
Total weight	kg	38000	42000

Thanks for visiting, by the time you are paying attention to us, our boom concrete pumpsare being delivered /distributed to the world everyday -it'll be such agreat honor if you can join us.
For more information please visit us @www.cnfocus.biz
