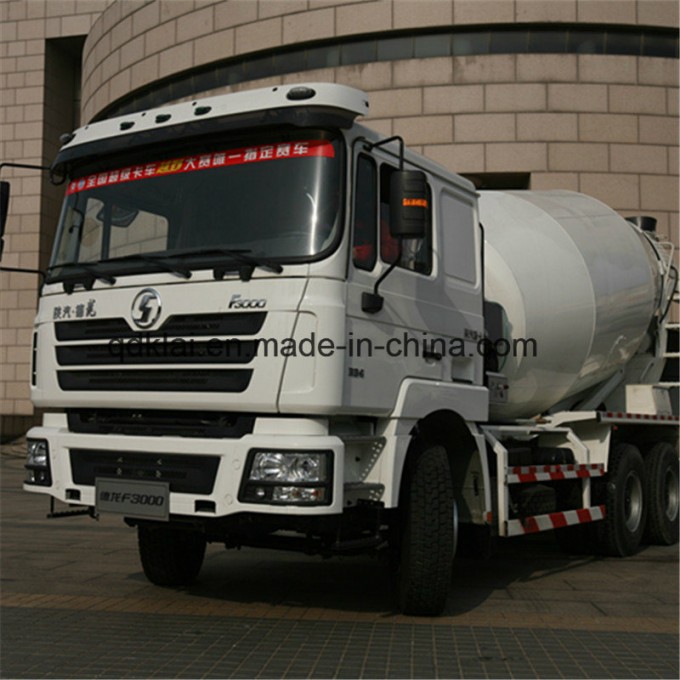

Shacman 6X4 10 Wheels Concrete Mixer Truck 8cbm - 12cbm

Chassis: Shanxi automobile
Cabin Features: MAN F2000 widened and lengthened flat-roof cabin

Engine brand: WEICHAI
Model: WD12.336 EURII
Type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596L
Engine output: 336HP @2200 rpm
Max. Torque: 1350 NM @1300-1600rpm
Bore: 126mm x 155mm
Specific fuel consumption: 195g/kwh

Transmission (gear box): Fuller 12 speeds (12JS160T)
Clutch: D430 Diaphragm type
Steering: ZF technology Hydraulic power steering

Front axle: Steyr 6.5ton
Rear axle: Steyr strengthened axle 13ton (punching-welding axle housing, double
Reduction driving axle, inter-wheel differential and differential lock)

Fuel tank: 380L, lockable
Tire: 12.00-20 Bias tire(Rim: 8.5-20)
No. Tyre: 10+1 spare
Kerb mass: 11170kg
Approach angle(° ): 20
Departure angle(° ): 19
Front overhang(mm): 1525
Rear overhang(mm): 1785
Max. Speed(km/h): 77
Wheel base(mm): 4000+1350
Dimension(mm): 9345*2500*3774



Discharged remain ratio: <0.5%Hydraulic pump and motor: EATON 6423(America)Decelerator: BonFIGLIOLI Decelerator 580Features:
Crank chute operation
High pssure water jets, with air pssure supply
Rod manipulation
Radiator made in China
