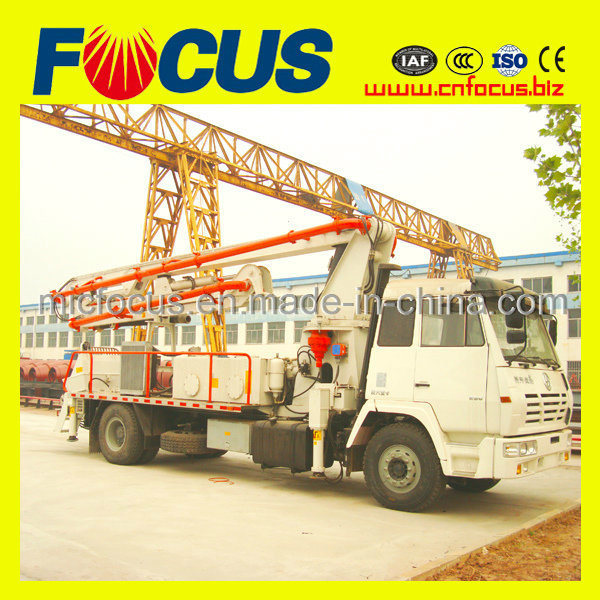

Standard Configuration Concrete Pump Truck with 24m Boom

Standard Configuration Concrete Pump Truck with 24m Boom


Bringing in advanced experience both at home and abroad, FOCUS boomconcrete pump is developed by applying modern advanced computer simulation techniques and systematically analyzing the influence condition of the boom fatigue life because of the change of various parameters such as stress, displacement, natural frequency etc. The series products won many patents on boom structures optimization and hydraulic systems design.

Advantages of Focus Boom Concrete Pump:
1.good pumping performance;
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO CE certified.


Why would our clients choose Focus Boom Concrete Pump?
1.large pumping capacity with high efficiency;
2.light-weighed and optimized design enables FOCUS boomconcrete pump truck small occupation of ground area;
3.low oil consumption, economic engineered;
4.full hydraulic system guarantee stable pumping performance;


Parameters ofFocus 24m Boom Concrete Pump:

Model		HDT5180THB-24/3	Chassis Model	SX1165TN561
Total Weight		18460kg	Driving Mode	4x2
Max. Driving Speed		92km/h	Driver Cab with Air Conditioner, Sleeping Room
			Wheel base	No.1 & No.2		5600 mm
Shape	Total Length	13740mm		No.2 & No.3		1310mm
	Total Width	2490mm	Wheel Tread	Front		2065mm
	Total Height	4000mm		Rear		1850mm
Engine	Engine Model	Weichai Power WP10.290	Tire Size			12.00R20 Radial Tire
			Mini. Turning Radius			8800mm
			Driving Brake			Double Loop Air Brake
	Power	290PS(213KW)	Boom System	Model		3 section, Folded, Hydraulic
	Max. Torque	1055NM		Max. Height		23.1m
	Emission Standard	EU III		Pipe Diameter		DN125
	Displacement	9726ML		Section1boom	Length	8220
Pump Delivery System	Driving Mode	Hydraulic			Rotation	910
	Oil cylinder DiameterxStroke	φ140mmx2000mm		Section2boom	Length	5680mm
	Delivery cylinder DiameterxStroke	φ230mmx2000mm			Rotation	1800
	Distribution Vale	S Valve Mode		Section3boom	Length	5215mm
	Concrete Output in Theory	100/70m3/h			Rotation	2680
				Rotation Range		Any Angles
	Pump Delivery Times in Theory	19times/min		Max. Working Radius		19.1 m
				Max. Working Height		23.1 m
				Hydraulic System Pressure		32MPa
			Lubrication			Grease self-lubrication
	Bucket Capacity	0.7M3	Oil Tank Capacity			1000L
	Outrigger span	4550x2280x6030	Pipe Clean Mode			Water/Dryer

Thanks for visiting, by the time you are paying attention to us, our boom concrete pumpsare being delivered /distributed to the world everyday -it'll be such agreat honor if you can join us.
