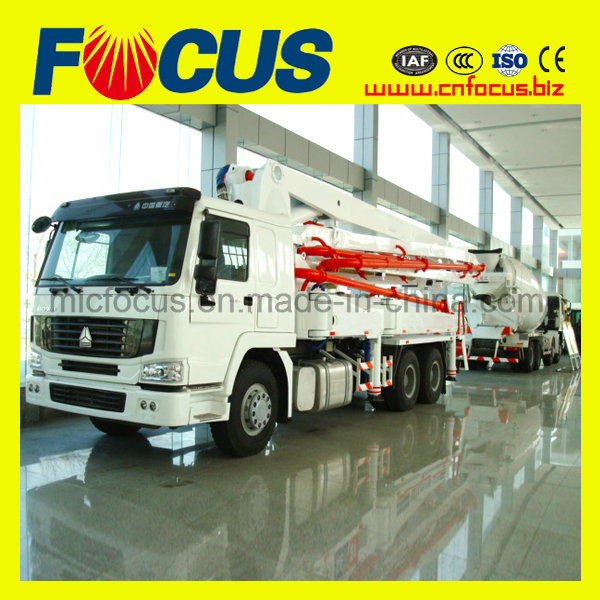

37m 39m Self-Drive Concrete Boom Pump, Concrete Pump Truck

37m 39m Self-Drive Concrete Boom Pump, Concrete Pump Truck

Be suited for different project application especially the small site and bridge projects.Upper parts can be designed according to customers' required chassis. And we could supply the chassis made in China.
Equipped withSTIEBEL(from Germany) PTO box to connect engine with hydraulic oil pump, making the pump group run more stable and efficient.

∑Boom System:The boom system is designed by Multi physics analysis and testing. The steel is made by imported HSLA (High strength low alloy steel). All the welding are 100% inspected to ensure the structure rational and high reliability.
Adopt "R" type folding boom sections easy for special project. And the boom speed is adjusted
sleeplessly, with compensated pssure, proportion system of sensitive to loading, as assure the flexible working of the boom.Maximum shock-absorbing controlled by multiple valve controller.

∑Pumping System:Tungsten steel glass plate and cutting ring guarantee the long using life.Automatic retraction of the concrete piston provides a more convenient and easier maintenance for the pumping system.
Automatic accelerator tracking system adjust the accelerator according to the actual pumping condition to save more diesel oil.

∑Hydraulic & Electrical System:Adopt double pumps with double circuits system and world famous hydraulic components.Variable displacement axial piston pump make the swing cylinder more stable and powerful.Operated by manual/panel/radio remote controller(NBB)


Why would our clients choose Focus Boom Concrete Pump?
∑large pumping capacity with high efficiency;
∑light-weighed and optimized design enables FOCUS boomconcrete pump truck small occupation of ground area;
∑low oil consumption, economic engineered;
∑full hydraulic system guarantee stable pumping performance;


Parameters ofFocus Boom Concrete Pump:

Parameter/Unit		HDT5281THB-37/4	HDT5291THB-39/4
Output in theory	m3/h	125	125
Bucket volume	L	700	700
Model of dirstribution valve		S Valve	S Valve
Max. operation radius	m	32.6	34.7
Max. operation height	m	36.6	38.7
Max. operation depth	m	25.5	27
Open height of boom	mm	8450	8830
Diameter of delivery pipe	mm	125	125
Length of hose pipe	m	4	4
Rotary range of boom		370°	365°
Quantity of boom		4	4
Max. speed	km/h	85	90
Chassis model		ISUZU CYZ51Q	HOWO ZZ5307N4647C
Wheel base between the first & the second axle	mm	4595	4600
Rear tread	mm	1850	1830
Max. engine output power	kw	265(1800r/min)	247(2200r/min)
Fuel consumption	L/100km	36.6	34
Out dimension(L*W*H)	mm	12000*2490*3800	12500*2490*3950
Total weight	kg	28000	29500
