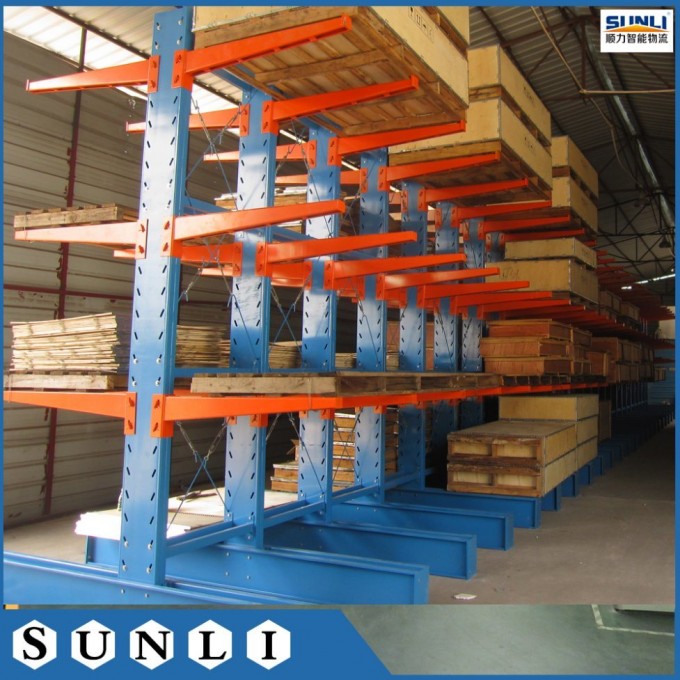

Heavy Duty Warehouse Storage Cantilever Rack

Heavy Duty Warehouse Storage Cantilever Rack





Techincal details of cantilever rack:

Style	long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage
Main Components	1, Vertical column( adjusted pitch of 140mm) 2, Column basis( W300*45/45mm) 3, Cantilever arm( Hanger 150mm) 4, connector/ "x"connector between columns
Components structure	1, vertical column: C/C tubes welded 2, column basis: C/C tubes bolted 3, cantilever arm: bended plate with hanger
Component ranges	1, vertical column: 300*90( 45+45mm) 2, Column basis: 300*45
Thickness	Column/basis/cantilever arm: 2.0mm~4.0mm Connector: 1.5~1.8MM
Cantilever arm length	Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm)
Column length	Cantilever arm length + extra 400~500MM
MOQ	2 units
The width between columns	400MM~1500MM ( narrow space will make stronger loading on cantilever )
Material	Made of Q235B steel
Lead time	25~30days( regardless of purchase quantities)
Stock	We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed)
Colour	RAL 5015( blue) + RAL 2004(Orange)

Basic structure of heavy duty cantilever rack units:







(Our Services)

Business scope within Sunli Company

Pallet storage	Warehouse Rack	Double deep pallet rack
	Radio shuttle rack	Double deep pallet rack
Accessories	Long span shelving rack	Mezzanine Rack System
Long items	Cantilever rack	Stackable Pallet Rack

Please inform us following information to get prompt offer for cantilever rack system

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for cantileverrack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
