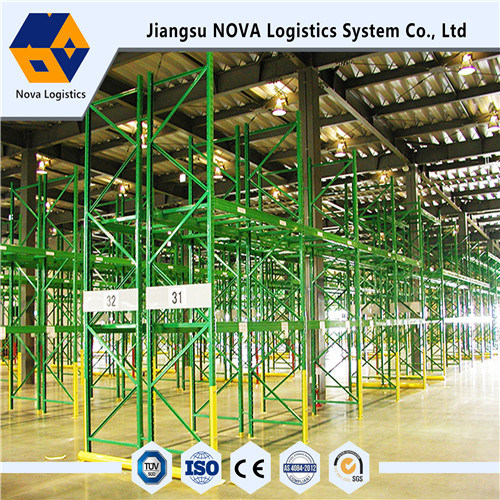

Warehouse Storage Heavy Duty Pallet Racking

Structural feature:

1. Aisle pallet racking is also called Location pallet racking which is of cut-in composite structure; The upright made by continuous punching and rolling; The frame is assembled by uprights and bracings and beams are fixed to uprights by hooks.

2. There are safety locks to fix beams and uprights tightly, protecting beams from dropping when loading goods with forklifts.

3. The height of each layer can be adjusted by 75mm freely, the capacity of each layer can be up to 4000kg.

4. It's convenient to load and unload pallets with goods on by using forklifts; Such forklifts as front-move forklift, balance-weight forklift, common forklift and stackers can be used to load and unload goods.

5. Steel panels, wooden panels and decking are also available for putting on beams instead of pallets.

6. Pallet racking is the most common storage system which is used in fields of manufacturing industry, the third part logistics, distribution centers, supermarket and so on.

7. Pallet racking is the first choice when building High position warehouses and AS/RS System.

Model: HEAVY DUTY PALLET RACKING

Specification:

Upright: NH1 TYPE (80 TYPE), NH2A TYPE(90A TYPE), NH2B TYPE(90B TYPE), NH3 TYPE(100 TYPE)
NH4 TYPE(120 TYPE), NH5 TYPE(140 TYPE)
NH6 TYPE(160 TYPE) or customized by clients
Beams are divided into Box beams and Step beams

Sectional sizes of box beams include: Y80,Y100,Y110,Y120,Y140,Y160 ,K180

Sectional sizes of step beams include:P80,PK100*1.8,P100*2.0,P125*1.8,P125*2.0

Pallet support bar: Regular type and cut-in adjustable types
