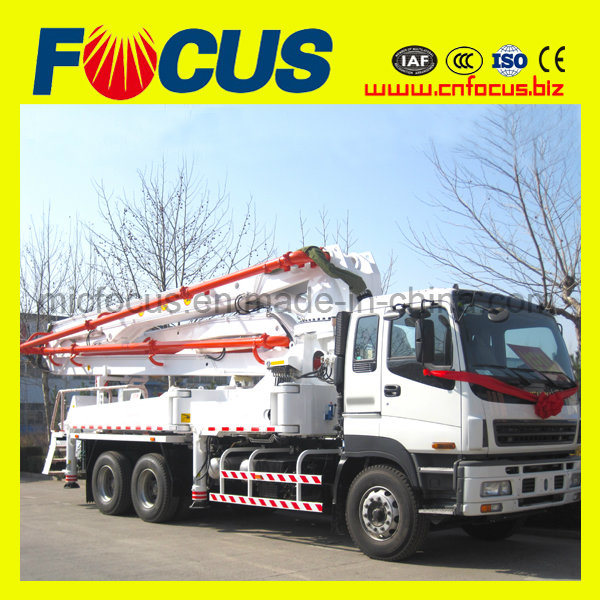

48/52m Mobile Concrete Pump Truck with Boom

48/52m Mobile Concrete Pump Truck with Boom

Our 48/52m concrete pump truck:
1.for concrete pumping
2.ISUZU Chassis,low oil consumption,great mobility;
3.ISO CE certified


Why would our clients choose FOCUS concrete pump truck?
1.large pumping capacity with high efficiency;
2.light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3.low oil consumption, economic engineered;
4.full hydraulic system guarantee stable pumping performance;


Features of FOCUS Portable/Mobile Concrete pump truck:
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
Features of FOCUS Portable/Mobile Concrete pump truck:
1. large pumping capacity with high efficiency;
2. light-weighed and optimized design enables FOCUS concrete pump truck small occupation of ground area;
3. low oil consumption, economic engineered;
4. full hydraulic system guarantee stable pumping performance;

Our 48/52m Boom Portable Truck-mounted Concrete Pump Truck Main Parameters

Parameter	unit	HDT5380THB-48/5	HDT5420THB-52/5
outputintheory	m3/h	125	125
bucketvolume	L	700	700
heightoftopsurfaceofbucket	mm	1400	1400
modelofdistributionvalve		SValve	SValve
max.operationradius	m	43.7	47.8
max.operationheight	m	47.7	51.8
max.operationdepth	m	34.3	39.8
openheightofboom	mm	9065	9400
distancebetweenfrontlandinglegs	mm	9780	10295
diameterofdeliverypipe	mm	125	125
quantityofboom		5	5
rotaryangleofeachboom	°	91/180/180/180/270	90/180/180/180/270
wirelinecontroldistance	m	33	33
remotecontroldistance	m	200	200
max.speed	km/h	89	80
min.turnradius	mm	11900	12500
brakedistance	m	10	10
chassismodel		ISUZUCYH51Y	ISUZUCYH51Y
max.engineoutputpower	kw	287(2200r/min)	259(2100r/min)
max.engineoutputtorque	n.m	1863(1100r/min)	1460(1100r/min)
max,gradientability	%	37	37
fuelconsumption	L/100km	38	38
outdimension (LxWxH)	mm	13300x2500x4000	13990x2500x4000
totalweight	kg	38000	42000
