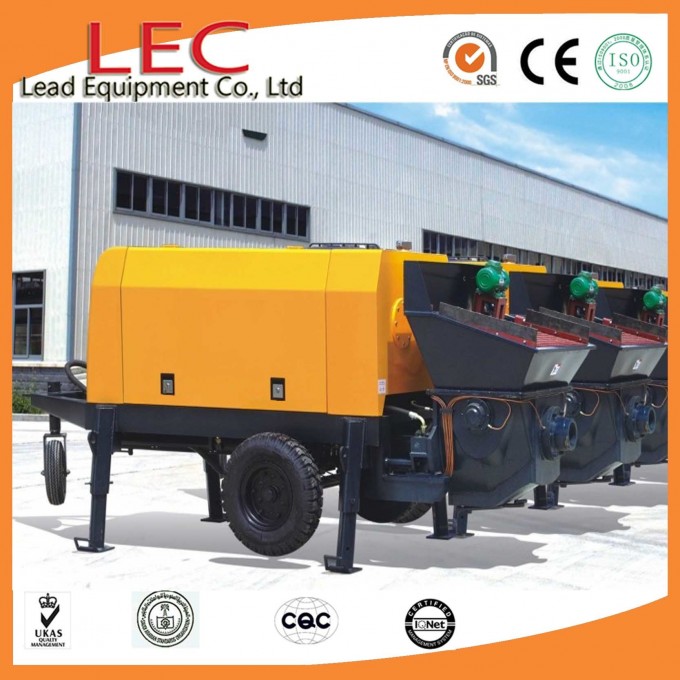

China Supplier Small Motor Cement Pump Truck

China Supplier Small Motor Cement Pump Truck



Brief introduction of cement pump:
THE PUMPING OF ConCRETE IS AN EFFICIENT METHOD OF MOVING AND PLACING CONCRETE. THIS BASIC PROCESS IS USED! N THE MANUFACTURE OF PRECAST AND TILTUP PANELS, ConCRETE FORMWORK, SLAB CONSTRUCTION, ConCRETE PAVING AND ConCRETE SPRAYING.

The construction and concrete pumping industries should be aware of the obligations to protect employees and members of the public under the various Victorian acts, regulations and codes of practice made under legislation relating to health and safety.

Application of concrete pump:
Conveying heating, heat insulation, light weight foam cement mortar.
Conveying light-weight foam cement, mortar for ground heating, heat insulation.
Conveying and injection of fireproof and heat pservation materials.
Press grouting and filling for all kinds of engineering and construction.
Use S-valve to switch the direction, for fine stone concrete conveying

Feathure of cement pump:
Good sealing S-valve, installed with floating wear resistant ring
High-quality wear resistant alloy components for long service-life
High delivery pssure for demand of high-rise and long distance projects
Double-loop open circuit hydraulic system, ensure fast direction switching speed and high efficiency
Air cooling system, without dependence of external water supply
With re-pumping function to smooth construction of better accessibility
Automatic lubrication system for long service-life
PLC system to ensure best electrical control performance
Equipped with wired remote controller, easy to operate

Warrantee:
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other manmade reasons are excluded.

Our Advantages and services:
Factory directly supply.
Professional sales team and experienced workers.
Competitive price according to good raw material purchasing ability, and high work efficiency
Best manufacturer in China.
Good after-sales service

Packing: In Nude, One unit/20GP
Delivery time: Usually in 10 working days for the small concrete pump for sale.

For more information, please feel free to contact me.

Model No./Mortar pump	LEC-CMTS15-8-22
Max. theoretical concrete output(m ³/h)	Low pssure4.2/high pssure8
Max. theoretical concrete pumping pssure(Mpa)	Low pssure 13 /high pssure 7
Theoretical vertical conveying height(m)	110
Theoretical level transmission distance(m)	300
Max. Aggregate particles(mm)	25
Hopper volume(m³)	0.34
Filling height(mm)	950
Dynamic brand	Electric motor
Dynamic model	3-phase asynchronous motor
Rated power(kw)	22
Hydraulic oil tank volume(L)	120
Concrete tube conveying diameter(mm)	Φ76
Overall dimension(L×W×H)(mm)	3380×1270×1245
Total weight(kg)	1480
