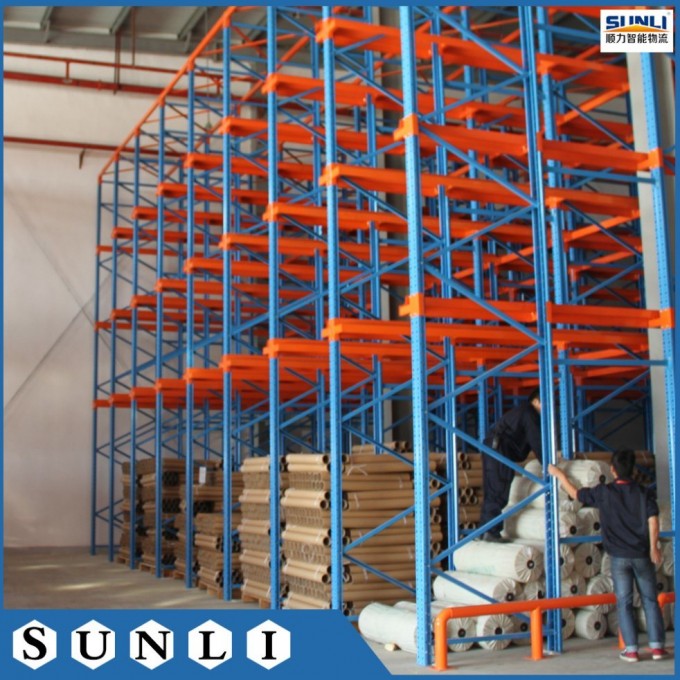

Warehouse Heavy Duty Pallet Storage Rack with Forklift Drive-in

Warehouse Heavy Duty Pallet Storage Rack with Forklift Drive-in


What we can do compared with other supplier:

Beam	1,Double C-shaped tubes roll-formed without welding(H45mm) To make bigger loading section when beam is spaded out 2,4 Corrugated edges along section( for 2sides) To make beams not easy to bend during rated capacity
Upright	3,Corrugated edges (4PCS)
Anti-shock resistance	4,Suitable for harsh working condition

Technical Description for drive in rack

Main components	Upright frame, beams, rails, frame connector Top connector("X"connector), corbles
Style	Pallet storage drive in rack system
Rated capacity	MAX 2000KG/Pallet
Height of rack	Available with your lifting height of fork truck and Warehouse height
Width Xlength of rack	As per your palletized load's specifications
Upright range	80*60, 88*68, 100*68, 90*60, 120*68, 120*80
Upright thickness	1.5~3.0mm
Beam range	80*45(80~160mm) 80*50(80/100/120)
Beam thickness	1.5~2.3mm
MOQ	TWO rack channels
Feature	1, first pallet on the ground directly 2, first layer of support corbel must be taller than your Overall forktruck's height
Rack channel for driving in	1, single way entry: Max 6pallet depth 2, double way entry: Max 13 pallet depth 3, with ground guiding rails
Main protecting device	1, upright protect in front 2, crash barrier along the driving in 3, top cross beams to make rack stable
Colour	RAL SYSTE( www. RALCOLOUR. COM)
Installation	We can despatch 2technical person overseas to do teach your workers

Drive-in rack system structure:

Drive-in rack system units:

Our Services

Business scope within Sunli Company

Pallet storage	Warehouse Rack	Double deep pallet rack
	Radio shuttle rack	Double deep pallet rack
Accessories	Long span shelving rack	Mezzanine Rack System
Long items	Cantilever rack	Stackable Pallet Rack

Please inform us following information to get prompt offer for drive in pallet rack

+ The dimensions of single rack unit (or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to theProduct Descriptionon the top)

FAQ
1, What is MOQ limitation for?
++ NO. But large purchase will bring competitive prices, 20FT container (10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
