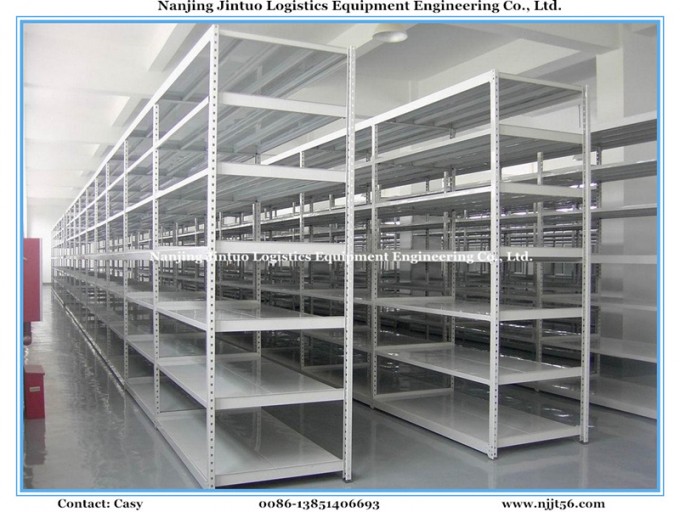

Long Span Warehouse Storage Pallet Rack

Medium Rack/ Middle Weight Shelving/ Medium Duty Type Rack
Features:
1.Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.

2.Availableinwiderangeofshelvingheight,depth&lengthandloadingcapacitiestoclients' storage needs.

3.Fullyadjustableshelfheight.

4.Veryeasytoinstallanddismantle.

5.Rapidhandlinganddirectaccessofalmostalltypesofgoods.

6.Maximizesspaceuseinanystoreroomconfigurationwhileretainingoptimumproductaccessibility.

7.Strengthandrigiditypventscompssiondamagetogoods.

Parameters:Loading Capacity:300-500kgs UDL/level as general, up to 1,000kgs UDL/level as special requestRacking Height:1,800-3,000mm as general, up to 11,000mm as special requestRacking Depth:300-600mm as general, up to 1,200mm as special requestBeam Length:1,200-2,000mm as general, up to 3,000mm as special requestRacking Finish:Powder Coated Finish orGalvanised Finish forSteel Panels and upright frame

Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing

B) The size of shelf (length/mm*width/mm*height/mm)

C) How many bays you want

D) The loading capacity of each layer

E) The RAL color you want

F)The layers of each shelf

Section of Upright (mm)	Length (mm)	Depth (mm)	UDL (kg)
55x55x1.5	1200	470	300
55x55x1.5	1200	600	350
55x55x1.5	1200	720	350
55x55x1.5	1200	920	450
55x55x1.5	1200	1180	450
55x55x1.5	1500	470	200
55x55x1.5	1500	600	300
55x55x1.5	1500	720	300
55x55x1.5	1500	920	400
55x55x1.5	1500	1180	400
55x55x1.5	1800	470	250
55x55x1.5	1800	600	250
55x55x1.5	1800	720	250
55x55x1.5	1800	920	400
55x55x1.5	1800	1180	400
Note: 1) Standard height are 1500mm, 1800mm, 2000mm, 2400mm, 3000mm, and the pitch is 50mm. 2) Please contact the supplier if you want non-standard specification.
