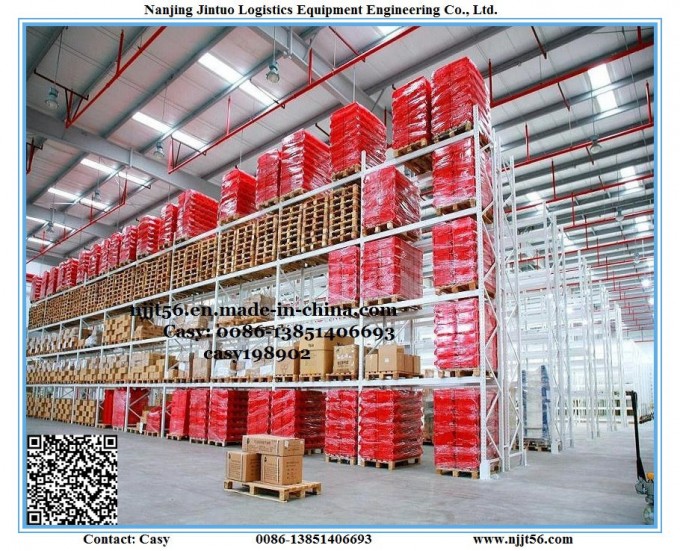

Warehouse Heavy Duty Pallet Storage Rack with Wire Mesh Decking

Heavy Duty Pallet Storage Rack with Wire Mesh Decking
1. Loading capacity: 5000kg/layer
2. Colors: Available in various of colors
3. Size: L2700*W1200*H5000mm, Customized size available
4. Feature:
A. Adjustable by each pitch 75mm, smart section design and high-quality steel
B. Work with fork truck, and store or take goods with pallet.
C. Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets.
D. Convenient in assemblage, suitable for large loading capacity.
E. First in, fist out, with high cycling rate.
F. Customized size and colour available

Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) The layers of each shelf?
D) The loading weight of each layer
E) The RAL color you want

Contact Information:
Casy
Phone: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278

For a quick price, please answer following questions:

1. the CAD drawing of the warehouse (if available)

2. size (Width, Depth, Height)

3. How many loads/levels

4. Quantity

5. Port of destination (for a CFR or CIF price basis)/ or FOB Shanghai

6. Loading capacity of each layer

Contact information

Name: Casy

Tel: (+0086)-13851406693
(0086)-025-85363177


Pictures & Packing

Workshop

Warehouse storage heavy duty rack dimension(mm)	1800*600*2000	2000*1000/1200*2500/4000
	2000*800*2000	2500*1000*3000/5000
	2000*800*2500/15000	2700*1000*4000/8000
Upright	80*60,90*70,100*70mm
Beam	80*50,100*50,120*50,140*50,160*50mm
Shelf	0.6-2.5mm
