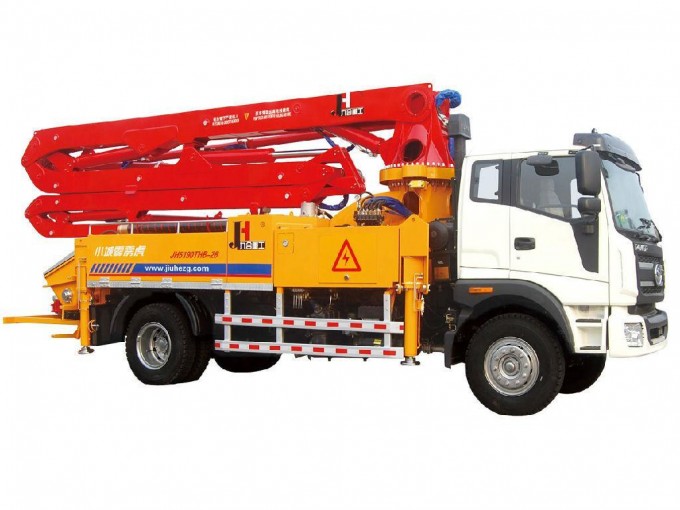

52m 67m Concrete Pump Trucks for Sale

All materials of boom, support leg, turret and turret supporting uses fine grain and high strength 700~900 Mpa steel plate, box-type structure, with good strength and rigidity, light weight and less oil consumption.Electro-hydraulic proportion controls boom extension, smooth operation can move lightly. Balance valve buffer self-lock function, which can protect safety of boom system. Stepless speed regulation RZ foldable boom system, which unfolds fast and can work in the narrow construction. Each boom can do separate and joint operation to eliminate any construction dead angle. The weight of remote control device is light and that is easy to take. only need two handles to operate, the place boom can be accurate and in place.

Main Features:

- Electric proportional constant power variable closed type hydraulic system, total power take-off, frequency reversing valve block on the main oil way, pumping reversing is hydraulic flexible reversing. Compared with open -circuit, pssure loss is small, reversing impact is small and operating is steady. It can be effectively improved the operating life of boom system;

- The delivery ability of the pump has the function of stepless regulation to meet different output's requirements;

- Italy LEonESSA slewing supporting, hydraulic motor + planet-gear speed reducer drive boom to slew 370°. Brake buffering effect is good. Dual protection: mechanical limit and electric limit;

- Pumping system is sent a signal by approach switch, PLC microcomputer controls, main electric components are brand products made by SIEMENS, LG, SCHNEIDER and so on.

-All hydraulic valves and oil pump motor use high quality products produced by Rexroth, HAWE. Engine- transmission gear- transmission shaft- transfer case- oil pump- proportional valve- cylinders match reasonably.

- Boom is steady and tail pipe shake is light and pouring is correct during pumping.

- All operations can be carried out by wireless remote control and wired remote control. There are two separate operating devices, ensure the reliability and safety of the equipment.

Main Technical Parameters :

MainTechnicalParameters
MainSystem	Model	40mArmBrandNew
PumpingSystem	Max.Theor.output	160/100(m3/h)
	Max.Theor.concreteoutputPressure	7/11MPa
	Ratedworkingpssure	35MPa
	Pumpingfrequency	28/19min-1
	Hoppercapacity	550L
	Fillingheight	1540mm
	Hydraulicsystemtype	Openloop
	Distributionvalve	Svalve
	Oilcylinderdia.×stroke	φ130×2100mm
	Concretecylinderdia.×stroke	φ230×2100mm
	Hydraulicoilcooling	Aircooling
	Recommendedconcreteslump	12--23cm
	Max.aggregatedimension	40mm
Placingboom	Structuretype	40X-5RZ
	Placingdepth	39.5m
	Horizontaldistance	35.15m
	Placingdepth	23.15m
	Slewingangle	±350°
	Boomnumber	5
	Thelengthofboomsection	8000/6820/6550/7130/7000mm
	Sectionsfoldingangle	90°/180°/180°/240°/195°
	Pipediameter	125mm
	Endhoselength	3000mm
	Min.heightofopeningplacingboom	7595mm
	Outriggersspan(front×rear×side)	6191×8343×7046mm

Classisandthe wholemachine	Chassismodel	Mercedes-BenzActros33416×4
	Wheelbase	4500+1350mm
	Enginetype	OM501LA
	Enginepower	300/1800kW/(r/min)
	Enginemomen	2000/1080N.m/(r/min)
	Maximumdisplacement	11946cc
	Oiltankcubage	400L
	Tailgasexhauststandard	Euro.5
	Totalweight	30000kg
	Overalldimensions	10766×2500×3864mm
Others	Lubricationmode	Automaticlubrication
	Oiltankvolume	800L
	Controlmode	Manual+remotecontro
	Maximumwaterpssure	12MPa
	Watertankvolume	700L
	Pipecleaningmode	Watercleaning/drycleanin
