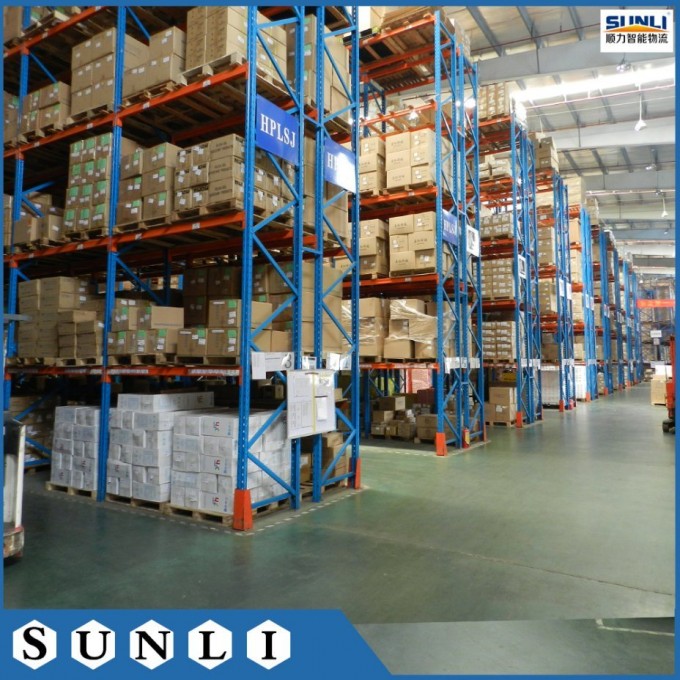

Heavy Duty Industrial Shelving Warehouse Storage Pallet Rack

Heavy Duty Industrial Shelving Warehouse Storage Pallet Rack


Techincal Data for Rack System

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of Rack	Standard Pallet 1200x800 Depth:1000MM x Width: 2700MM Height: pitch is adjusted by increments of 75mm
Beam Range	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright Range	80*60; 88*68; 90*60; 100*68; 120*68mm, Thickness: 1.5~3.0mm
Colour	RAL SYSTEM Upright frame-Blue; Beam-Orange
Weight Capacity	Rated 2000KG/Level
Package	Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper
Export Area	South America; Middle America; South(South East) Asia; Africa; Middle East
MOQ	2 units( 1 start unit+1 extension unit)
Lead time	1, 18~21days for one container 2, 25~27days for less than one container

Pallet storage rack's Packing and loaded in container:





Please inform us following information to get prompt offer for storage pallet rack

+ The dimensions of single rack unit ( or palletized load descriptions)

+ The palletized payload

+ Row of racks( single row, back-to-back row or multiple rows)

+ How many palletized load within one unit

( Please refer to the Product Description on the top)

FAQ
1, What is MOQ limitation for Storage Pallet Rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.

2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.

3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.

4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.

5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
