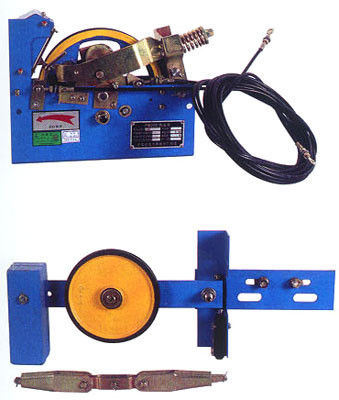

Elevator Overspeed Governor (XSQ208)

Machine-Roomless Overspeed Governor - XSQ208
ID Number: 110304
Rated Speed: 0.25-2.0m/s
Tension Force: 300N-2200N
Wire Rope Diameter: φ6mm
Sheave Diameter: φ200mm
Overspeed governor in one of the safety control unit of elevator safety protection system. When elevator in running no matter what overspeed governor in the capsules, and even the risk of falling, while the other under the condition of safety protection devices do not work, the overspeed governor and safety gear make the elevator car stop.
Overspeed governor can match the linkage protection for security clamp, can also be used with synchronous motor brake is used, with two-way detection elevator speed, one-way action signal output function, test actions and reset should be manual operation. It can meet the use of conventional have machine room passenger elevator.
We are specialized in supplying safety components for elevator, such as oil buffer, PU buffer, speed governor, safety gear, rope gripper, guide shoe, which have 100 series of more than 400 types. Good quality and service with competitive prices have won us good reputation in elevator industry abroad.
