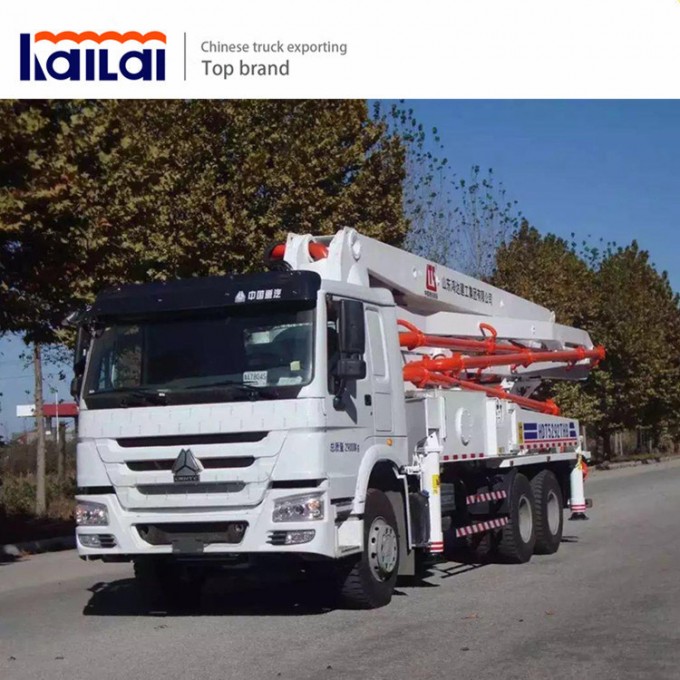

| Model | Unit | HCQ5196THBEQ | |
| Vehicle parameter | Total Length | mm | 9800 |
| Total Width | mm | 2495 | |
| Total Height | mm | 3000 | |
| Curb weight | kg | 19000 | |
| Boom and legs parameter | max. operation height | m | 32.2 |
| max. operation radius | m | 28.6 | |
| max. operation depth | m | 20.8 | |
| open height of boom | m | 7.5 | |
| first boom length and angle of rotation | m m/° | 7120/90 | |
| secondboom length and angle of rotation; | m m/° | 4570/180 | |
| thirdboom length and angle of rotation; | m m/° | 5200/245 | |
| /fourthboom length and angle of rotation; | m m/° | 5150/230 | |
| /fifthboom length and angle of rotation | m m/° | 5000/360 | |
| arm folding mode | Mmode | ||
| turntable rotation angle | ° | ±365 | |
| distance between front landing legs | mm | 5850 | |
| distance between rear landing legs | mm | 5420 | |
| front and rear legs longitudinal span | mm | 6300 | |
| leg opening mode | X-H | ||
Pumping system parameter | output in theory | m3/h | 68/90 |
| theoretic pumping pssure | Mpa | 8 | |
| Theoretical pumping times | 26/19 | ||
| Conveying cylinder diameter | mm | 200/230 | |
| Transport cylinder stroke | mm | 1800/2000 | |
| Hydraulic system | open type | ||
| Tank volume | Mpa | 32 | |
| Oil Tank volume | L | 480 | |
| Water Tank volume | L | 450 | |
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| End hose diameter | mm | 125 | |
Chassis parameters | chassis model | EQ5196GLJ | |
| wheel base | mm | 5000/5600 | |
| Drive Type | 4x2 | ||
| enginemodel | CUMMINS | ||
| max. engine output power | KW | 198/215 | |
| emissionsstandards | Europe IV | ||
| fuel tank capacity | L | 280 | |
| max. speed | Km/h | 90 | |
| brake distance | m/km/h | ≤10/30 | |
