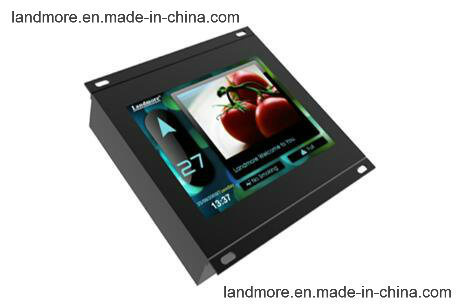

12.1" Multimedia CPI Elevator LCD Display

1.Overview:LMEMD Serial Elevator Media Display is high-tech product used in elevator field, it is developed independently by Landmore Technology Co., Ltd..LMEMD including software and hardware, it can display lift messages(position,travel direction, service messages), Internet info.video file,floor guide,picture , etc.only with internet input and lift control info. input,LMEMD can display network news,weather forecast and lift info, you can change background(picture), video file, music, text file by moving disk or online . LMEMD helps realize the real e-era elevator display.2.Specification:Technique: Full color TFT-LCD Pixel format:1024×768 pixel (based on measure of display, the format will difference.)Color: 16.7M (based on measure of display, the color will difference.)Visual Angle: Horizontal 150º,vertical 130°Luminance: 260cd/m2Contrast: 450:1Active View: 15″: 306.0(W)×230.0(H)mm12.1″: 244.0(W)×184.0(H)mm
10.4″: 215.0(W)×160.0(H)mmOperating Power: AC220V/50HZPower Consumption: <25WLife Time of Backlight: 45,000h3.Usage:Car displayHall display4.Connecting:5.Interface:

v Text info: Text advertisements, text notice, text message etc. it can be inputted by special software. Communication by STP(RS232- 485).

v Elevator info: Floor, direction, service messages (overload, out of service, fire, etc.) connecting with Elevator control system.

v Transmitting methods: serial communication and Gray code.

v Floor guide display: Different Floor information guide .

v Background: Can be edited , stored, transmitted.

v Time, date, temperature.

v Internet news: Automatically update.

v Video file: Play DVD SDVD,MPEG,AVI etc.

6.Type and function:

6.1 Type description:

6.2 Type
6.2.1 LMEMD150YWE


6.2.2 LMEMD150ZNE

6.2.3 LMEMD150YNE

6.2.4 AND SO ON
