Detailed Description
Brief IntroductionCare-touch display is a car touch cop, including floor touch buttons, elevator floor, elevator status, warning information, full view high definition display with one click repair function. This display is easy to install, easy to use, can be installed in embedded cop, can also be hung on the cop.Performance index
Working Temperature: -10~70ºCStorage Temperature: -20~80ºCRelative Humidity: 95% 40ºCElectric SpecificationInput voltage DC20~60VPower consumption 14W(15.6) /19.92W(21.5)CPU basic frequency Cortex™-A9 1000MHzROM space 4GB DDR3(Maximum scalability to 64GB)RAM space 1GB(Maximum scalability to 2GB)USB interface USB2.0*3(Terminal two and pin one)LVDS interface 2ch/24bit*1 1920*1080(MAX)HDMI interface 24bit1920*1080(MAX)I2C 1*2Audio Audio Line out L/R 1 for eachEthernet 10M/100M*1(RJ45 with tape light)Man-machine interaction Support mouse, keyboard, touch screenVideo format Video Forma mpeg4,*.mp4Operating system Android 4.3structure sizeSpecification of screen 15.6" 21.5"Appearance size 15.6 240*429.5(mm) 21.5 350*650*28(mm)Display field of view 15.6 193*344(mm) 21.5 268*476(mm)Display parametersResolution 1920*1080Screen scale 16:9Brightness 400cd/m2Contrast 5000:1Color 16.7M Visual angle (horizontal / vertical) 178°/178°Response time(ms)6msMinimum touch object diameter 6.5mmCommunication interface protocol| 4PIN port : | 1 | 2 | 3 | 4 |
| Input signal definition : | +30V | GND | Clock | Data |
Communication connection diagram
Product function| Cop floor display and floor selection function |
| Open and close door button, alarm button function |
| Interface displays date, week, weather, temperature, PM2.5 and other humanized friendly information |
| Video function, you can customize the playback of video information |
| Scrolling news information, you can customize the news broadcast |
| Alarm information display, such as fire, overloading information tips, no smoking tips |
| For a variety of button display programs, such as different styles |
Provide a variety of standardized cop screen interface display style| Load and passenger information display |
Provide two ways to change the display contentJust insert disk into the device to automatically updateRemote update via remote web clientUsers can play pictures and homemade video clips, pictures in JPG format, short video for: AVI, MPG. and so on |

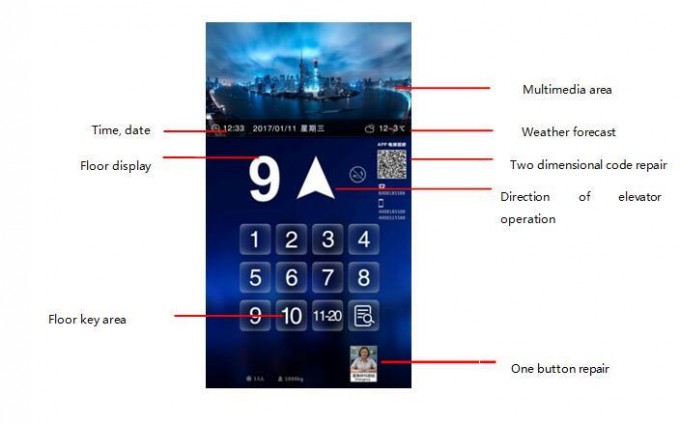

Product function diagram
BOM| Name | No. | Unit | Remarks |
| Display | 1 | Piece | |
| Stabilized voltage supply | 1 | Piece | |
| Touch signal wire | 0.5 | Meter | |
| Communication cable | 5 | Meter | |
| Antenna | 1 | Piece | Optional |
| 4G Card | 1 | Piece | |
| Manual | 1 | Piece | |
| 3M collodion | 1 | Piece | |
| RS32 Board | 1 | Number | |
Product Image
