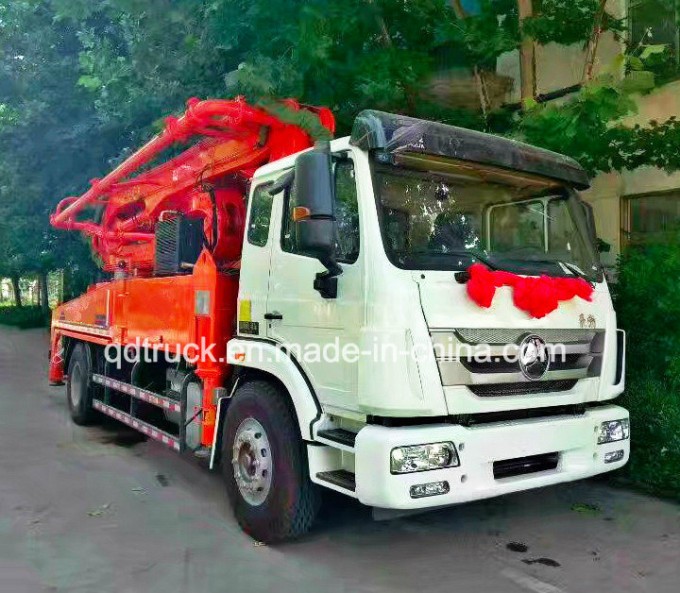

25M 27M 29M concrete pump truck, Cement Pump Truck

HOWO25M 27M 29MConcrete Pump Truck,Cement Pump Truck

Packaging & Delivery
Packaging Detail: Packed in nude, use RORO or Bulk boat.
Delivery Detail: 60days
Specifications
HOWO truck supplier Qingdao HETANCH
1. STEYR tech engine
2. import EATON clutch
3. Eaton/Fuller gear
4. WABCO valve. ZF8118 steering






HOWO Concrete Pump Truck supplier Qingdao HETANCH

Product Description

WP10.336N, WP10.380 ENGINE, 37, 42, 48M Concrete pump truck, popular more than 40 countries, Favorite brand in the world

1. Weichai engine
2. import clutch
3. Eton/Fuller gear
4. WABCO valve, maintenance-free battery
5. STEYR tech axle
6. Favorited Cabin

Our Services
Warranty, technical training, spare parts surpplying, Phone or mail support
Company Information
The first automobile anufacturer, has a history more than 45years, business expanded to Asia, Africa, south America and all over the world, More than 10000 units producing capacity, ISO 9001, TS16949, ISO14001, OHSMS18001 certificate
FAQ
FOB or CIF terms,

Q: What's the brand of your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Q: How could I trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company.

:

			29()	29()
	(/) Max.Theor.output(high/lowpssure)	m3/h	60/100	40/95
	(/) Max.Theor.concreteoutputPressure(high/lowpssure)	MPa	12/7	12/6
	(/) Pumpingfrequency(high/lowpssure)	min-1	15/26	12/24
	× Concretecylinderdia.×stroke	mm	φ230×1600	φ230×1600
	Feedingheight	mm	1450	1450
	Structuretype		4M	4M
	// Placingboommaxheight/depth/radius	m	29/17/24.6	29/17/24.6
	Slewingangle		365	365
	Highandpssureswitch-over
	(××)Overalldimensions	mm	3534x2480x10203	3534x2480x10203
	Totalweight	Kg	20800	20800

38M pump truck specification:

Model			HTC5291THB38X-4Z
Pumping system	Max. Theor. output	m3/h	120
	(/) Max. Theor. concrete output Pressure(high/low pssure)	MPa	8
	Rated working pssure	MPa	32
	(/) Pumping frequency(high/low pssure)	min-1	26
	Hopper capacity	L	600
	Filling height	mm	1600
	Hydraulic system type		Open loop
	Distribution valve		SS valve
	×Oil cylinder dia.×stroke	mm	Φ130×1900
	×Concrete cylinder dia.×stroke	mm	φ260×1900
	Hydraulic oil cooling		Air cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Placing boom	Structure type		37X-4Z
	Placing depth	m	37
	Horizontal distance	m	34
	Placing depth	m	21
	Slewing angle		365°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	8500
	(××)Outriggers span (front×rear×side)	mm	6200×7200×8120
Chassis and the whole machine	Chassis model		ZZ5307N4647C()
	Wheelbase	mm	4600+1350,4575+1400
	Engine type		WD615.95
	Engine power	kW/(r/min)	247/2000
	Oil tank cubage	L	400
	Tail gas exhaust standard		IV
	Total weight	kg	28870
	(××) Overall dimensions	mm	12000×2490×3850
Others	Lubrication mode		Automatic lubrication
	Oil tank volume	L	600
	Control mode		+Manual+remote control
	Maximum water pssure	MPa	0.7
	Water tank volume	L	500
	Pipe cleaning mode		/Water cleaning/dry cleaning
