Elevator Parts|Electric Components|Elevator Control Cabinet

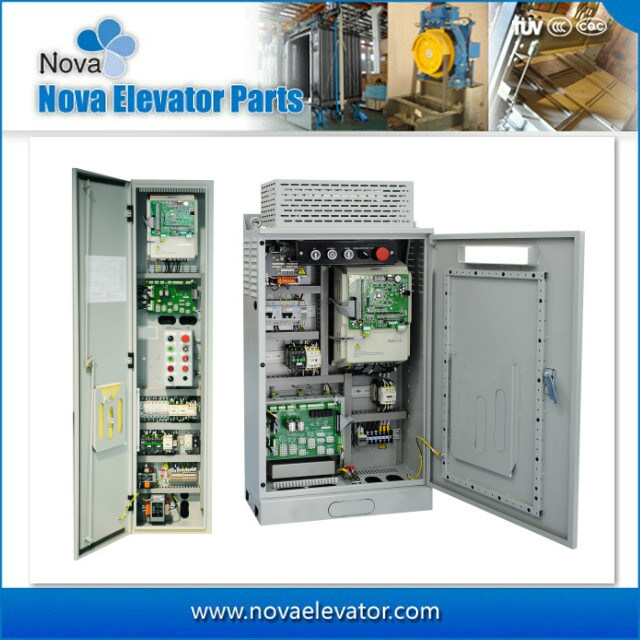

NV3000 Series Monarch Elevator Controller
1. 380/400/415V, 3Phase
2. 220V Single &Three Phase
3. Optional cards &parts

Elevator Integrated Controller, Lift Integrated Controller, Elevator Controlling System, Elevator Integrated Control Cabinet, Elevator Controller, NV3000 Series Step Elevator Controller

NV 3000 RATINGS
380/400/415V, 3Phase Ratings (-15% to 20%: 30Ph, 323Vac to 456Vac)

Model Code	frame	Input Current (A)	Output Current (A)	Typica Motor(kW)	Dimension			Braking Resistor			Braking Unit
		30Ph	30Ph		Height (H)	Width (W)	Depth (D)	n	kW	Part no.
NV-L-A/B-4002	c	6.5	5.1	2.2	355.0mm	220.0mm	150.0mm	220	0.6	MCTC-DBR-4002	In-Built
NV-L-A/B-4003		10.5	9.0	3.7				130	1.1	MCTC-DBR-4003
NV-L-A/B-4005		14.8	13.0	5.5				90	1.6	MCTC-DBR-4005
NV-L-A/B-4007	D	20.5	18.0	7.5	347.5mm 322.0mm*	223.0mm 208.0mm*	167.5mm 212.0mm*	65	2.5	MCTC-DBR-4007
NV-L-A/B-4011		29.0	27.0	11.0				43	3.5	MCTC-DBR-4011
NV-L-A/B-4015		36.0	33.0	15.0				32	4.5	MCTC-DBR-4015
NV-L-A/B-4018	E	41.0	39.0	18.5	554.5mm	289.6mm	223.0mm	25	5.5	MCTC-DBR-4018
NV-L-A/B-4022		49.5	48.0	22.0				22	6.5	MCTC-DBR-4022
NV-L-A/B-4030		62.0	60.0	30.0				16	9.0	MCTC-DBR-4030
NV-L-A/B-4037	F	77.0	75.0	37.0	To be advised			13	11.0	MCTC-DBR-4037	External
NV-L-A/B-4045		93.0	91.0	45.0				10	13.5	MCTC-DBR-4045

220V Single-Phase, Three-Phase Ratings (-15% to 20%: 10Ph, 30Ph, 187Vac to 264Vac)

Model Code	frame	Input Current (A)		Output Current (A)		Typical Motor (kW)	Dimension			Braking Resistor				Braking Unit
										10Ph		30Ph
		10Ph	30Ph	10Ph	30Ph		Height(H)	Width(W)	Depth(D)	Q.	kW	n	kW
NV-L-A/B-4002	C	13.2	11.0	5.2	9.6	1.1 12.2	355.0mm	220.0mm	150.0mm	130	0.9	130	1.1	In-Built
NV-L-A/B-4003		17.0	17.0	7.5	14.0	1.5/3.7				90	1.3	90	1.6
NV-L-A/B-4007	D	29.0	29.0	10.3	18.0	2.2/4.0	347.5mm 322.0mm*	223.0mm 208.0mm*	167.5mm 212.0mm*	90	0.9	90	1.1
NV-L-A/B-4011		36.0	36.0	15.5	27.0	3.7/5.5				65	1.1	65	1.6
NV-L-A/B-4015		41.0	41.0	19.0	33.0	4.0/7.5				43	1.6	43	2.5
NV-L-A/B-4018		40.0	40.0	22.5	39.0	5.5/11.0				32	1.6	32	3.5
NV-L-A/B-4022	E	49.0	49.0	27.7	48.0	11.0/15.0	554.5mm	289.6mm	223.0mm	25	2.5	25	4.5
NV-L-A/B-4030		61.0	61.0	34.6	60.0	15.0/18.5				22	3.0	22	5.5

Nova welcomes you to visit our website or email us to get elevator door operator and landing door pliminary inquiry sheet for your selection to meet your specific requirements.





If you are interested in our control cabinet, welcome to contact us as below.
