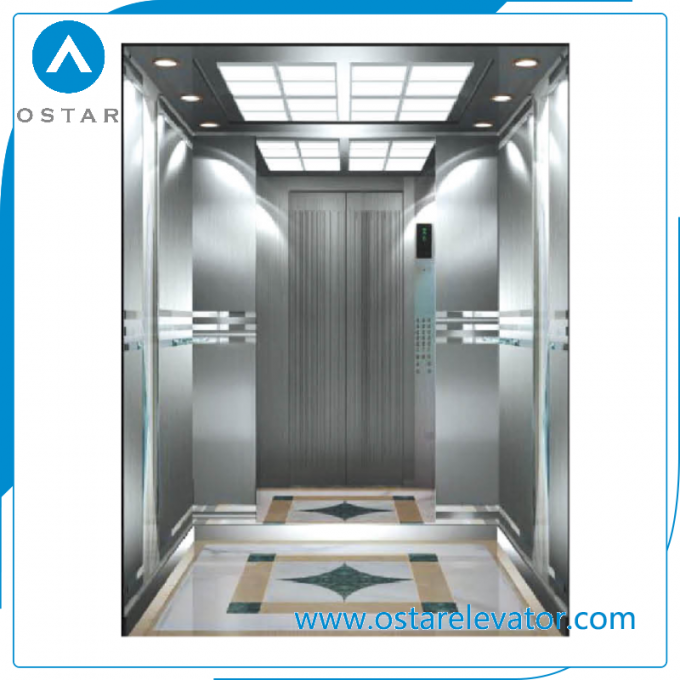

Safe and Smooth Mrl Passenger Lift with Hairline S. S Cabin

Advantagesof machine roomless lift:
1. Save 10% construction space
2. Save 40% of the electric energy
3. Enhance 25%~30% the efficiency

Specification:

Loading Capacity (kg)	450			630			800			1000
Speed (m/s)	1.0	1.5	1.75	1.0	1.5	1.75	1.0	1.5	1.75	1.0	1.5	1.75
Car Net Size (mm) W*D	1100*1100			1300*1250			1400*1350			1500*1600
Door-opening Type	Center Opening Type
Door-opening Size (mm) W*H	700*2100			800*2100			800*2100			900*2100
Hoistway Net Size (mm) W*D	2000*1500			2250*1700			2300*2000			2400*2100
Top Floor Height (mm)	4200	4400	4400	4200	4400	4400	4200	4400	4400	4200	4500	4500
Pit Depth (mm)	1600	1600	1700	1600	1600	1700	1600	1600	1700	1600	1700	1800
Max. Travelling Height (m)	60	75	90	60	75	90	60	75	90	60	75	90

Optional Function:

Emergency Function	leveling when power failure
Travel Function	anti-nuisance
	open the door in advance
	direct parking
	group control function
	duplex control
	on-duty peak service
	off-duty peak service
	door open time extending
Man-machine Interface	voice announcer
	car assistant operation box
	operation box for the handicapped
	intelligent calling service
	IC card control function
Monitor Function	remote monitor
	remote control
	camera function in the car

Production & Package & Shipment:


FAQ:
Q1: What is manufacturing norms for your elevators?
Our elevators are designed and manufactured according to elevator norms GB7588: 2003 (Equal to EN81).
Q2: What is the lead time of your elevators?
Our lead time is within 35 working days upon receipt of down payment and confirmed technical documents.
Q3: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q4: What is the guarantee for your elevator?
Our guarantee period is one year; but not includes damage caused by the human reason or force majeure.
